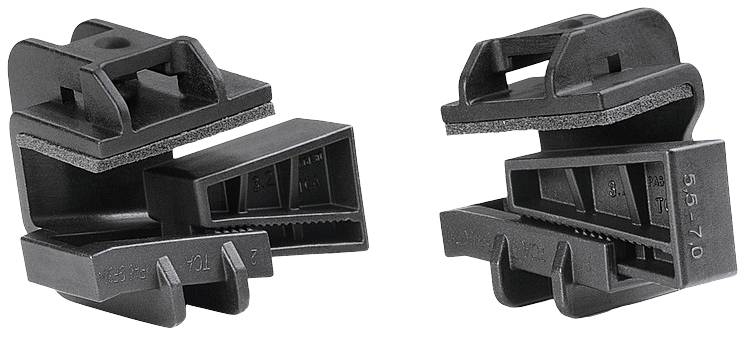

HellermannTyton Beam Clamp D with foam-PA6GF30-BK Cable mount Detachable 151-01188 Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable mount
Fastening method
Detachable
Material
Polyamide 6
Max. cable tie width
7.9 mm
Factory colour
Black
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
14-day return policy included
Highlights & Details
Mounting element GPN12-0984 Beam Clamp D with foam_PA6GF30
- Black
- Cable mount
- Detachable
Technical specifications
- For panel thickness 5.5 - 7 mm
- Tie width max. 7.9 mm
- Product type
Cable mount
- Max. cable tie width
7.9 mm
- Fastening method
Detachable
- Material
Polyamide 6
- Factory colour
Black
- Content
1 pc(s)
- Manufacturer part #
151-01188
- Width
28.6 mm
- Height
36.7 mm
- Length
46.2 mm
- Type
Beam Clamp D with foam-PA6GF30-BK
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2917430 HellermannTyton Beam Clamp D with foam-PA6GF30-BK Cable mount Detachable 151-01188 Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2917430 HellermannTyton Beam Clamp D with foam-PA6GF30-BK Cable mount Detachable 151-01188 Black 1 pc(s)
Description
These elements were developed for the automotive and truck industry, but can be used in any area where a firm and permanent attachment is required.
Cables, wires and hydraulic lines can be routed and fixed easily with the carrier clamps in agricultural machinery, the railway industry as well as in ship building and industrial buildings.
This text is machine translated.
Cables, wires and hydraulic lines can be routed and fixed easily with the carrier clamps in agricultural machinery, the railway industry as well as in ship building and industrial buildings.
This text is machine translated.
Features
- Easy installation without damaging the surface of the carrier
- Quick maintenance of the bundle by simply replacing the cable tie
- Head of binder can be brought into optimal bundle position
- Suitable for use with various sheet thicknesses
