HellermannTyton Cable mount Self-adhesive 151-13018 Bundle Ø range 3 mm (max) Ecru 2 pc(s)
EAN:
Part number:
Item no:
Product type
Cable mount
Fastening method
Self-adhesive
Bundle Ø (max.)
3 mm
Material
Polyamide 6.6
Bundle Ø range
3 mm (max)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 2 pc(s))
Total (€ 0.84 / piece)
€ 1.67
plus VAT.
14-day return policy included
Highlights & Details
Mounting base - TY8H1S, RA, RB series
- Screwable or self-adhesive
Our service for you
Technical specifications
- Flame-retardant according to UL94 V2 (without adhesive).
- Temperature range: -40°C to +60°C adhesive
- Product type
Cable mount
- Fastening method
Self-adhesive
- Bundle Ø range
3 mm (max)
- Bundle Ø (max.)
3 mm
- Material
Polyamide 6.6
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Factory colour
Ecru
- Halogen-free
No
- Content
2 pc(s)
- Manufacturer part #
151-13018

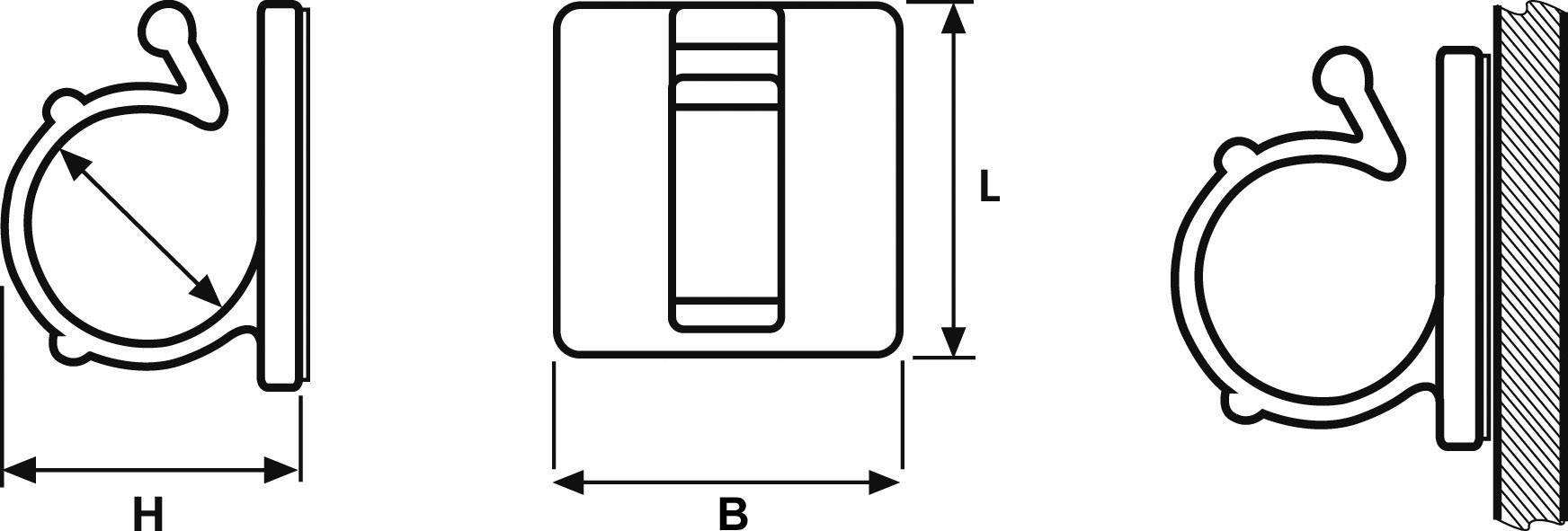

- Dimensions
(L x W x W2 x H) 13 x 13 x 5 x 5 mm
- Width
13 mm
- Height
5 mm
- Length
13 mm
- RoHS-compliant
Yes
- Type
151-13018
- Material (details)
Polyamide 6.6 (PA66)
- Operating temperature
-40 - +85 ºC, short-term - +105 °C (500 h)
- Temperature range
-40 - +85 ºC, short-term +105 °C (500 h) °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1687388 HellermannTyton Cable mount Self-adhesive 151-13018 Bundle Ø range 3 mm (max) Ecru 2 pc(s)
Description
These self-adhesive or screw-fastening cable mounts allow cables, wires or cable harnesses to be fastened quickly and easily without additional cable ties.
Hints
Applications: These cable mounts are ideal for hard-to-reach cable loca Applications: These cable mounts are ideal for hard-to-reach cable locations. The cable mount ASI clip has been especially designed for fastening ASI bus wires securely and gently.tions. The cable mount ASI clip has been especially designed for fastening ASI bus wires securely and gently.
