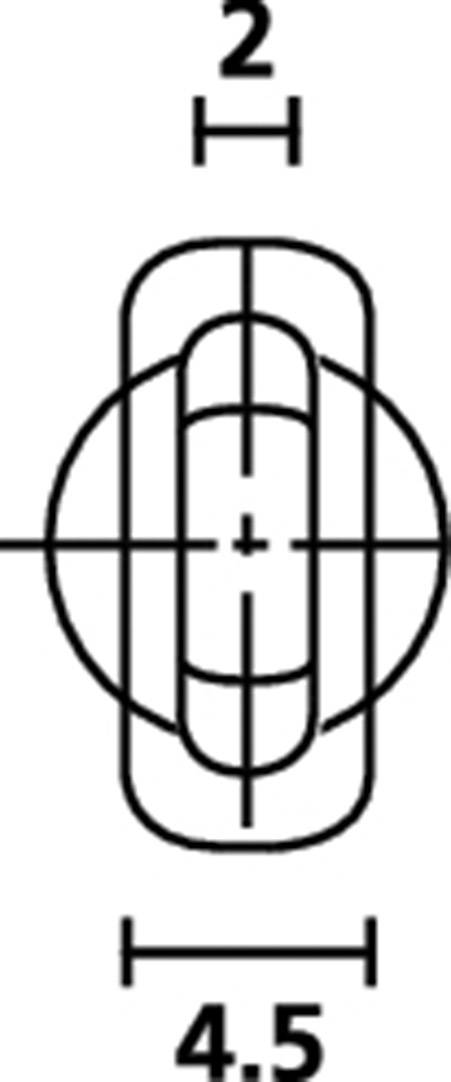

Stroke drawing/circuit diagram
1/6
Stroke drawing/circuit diagram
HellermannTyton HV4820 PVC NA 2000 Protective cap Terminal Ø (max.) 6 mm PVC Transparent 1 pc(s)
EAN:
Part number:
Item no:
Product type
Protective cap
Material
PVC
Clamp Ø
2 mm
Terminal Ø (max.)
6 mm
Factory colour
Transparent
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.08
90
-
€ 0.08
150
12% = € 0.01
€ 0.07
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 30
Total (€ 0.08 / piece)
€ 2.40
plus VAT.
14-day return policy included
Highlights & Details
Protective cover
Our service for you
Technical specifications
- Product type
Protective cap
- Factory colour
Transparent
- Material
PVC
- Length
25 mm
- Width
12 mm
- Height
4 mm

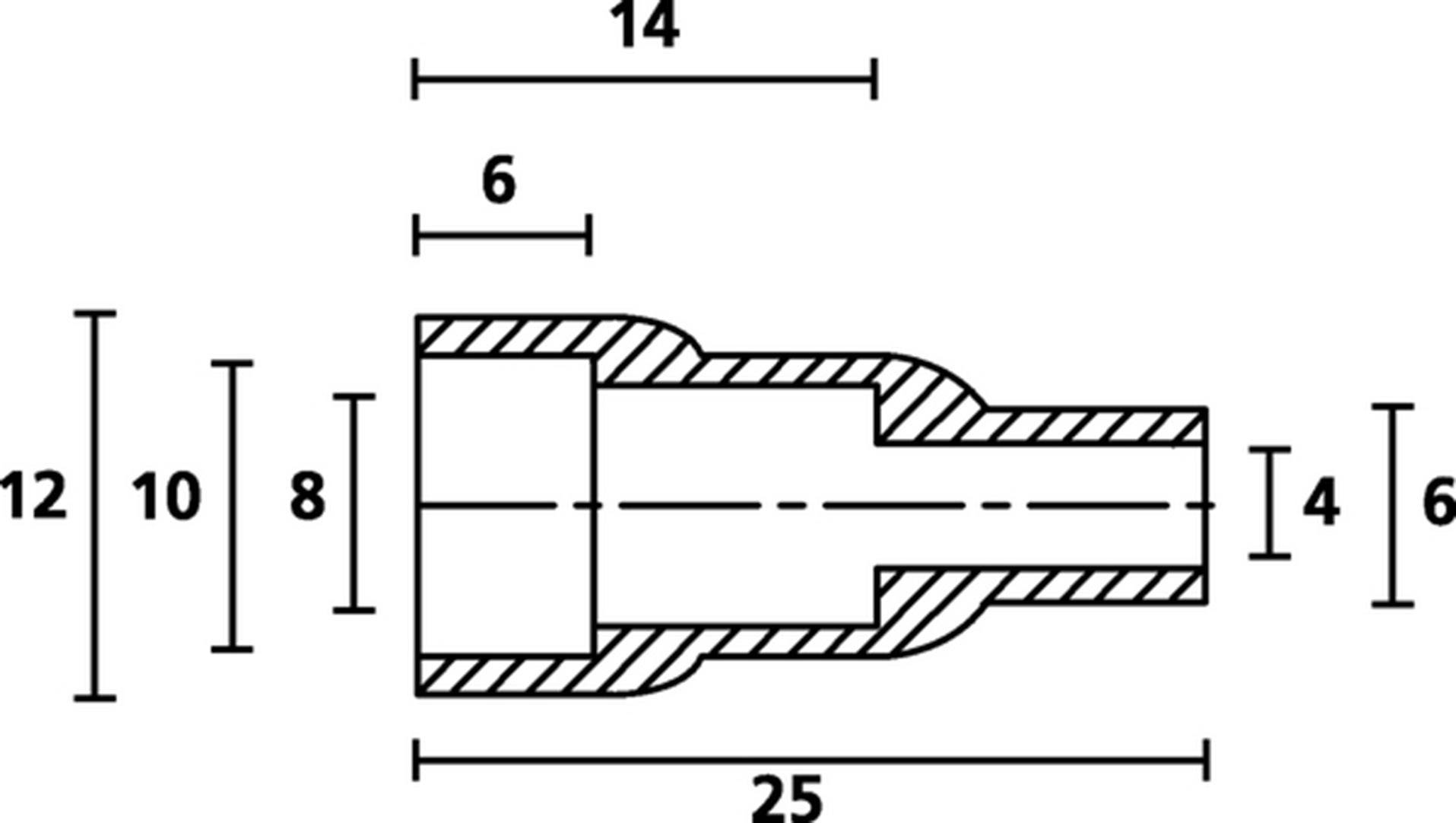

- Dim
(L x W x H) 25 x 12 x 4 mm
- Clamp Ø
2 mm
- Terminal Ø (max.)
6 mm
- Min. temperature
-30 °C
- Max. temperature
60 °C
- Weight
0.6 g
- Halogen-free
No
- Content
1 pc(s)
- Manufacturer part #
631-08209
- Type
HV4820 PVC NA 2000
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1505898 HellermannTyton HV4820 PVC NA 2000 Protective cap Terminal Ø (max.) 6 mm PVC Transparent 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1505898 HellermannTyton HV4820 PVC NA 2000 Protective cap Terminal Ø (max.) 6 mm PVC Transparent 1 pc(s)
