HellermannTyton TY8H1S-N66-NA-C1 Cable mount Screw fixing, Self-adhesive 151-12819 Bundle Ø range 3 mm (max) + acrylate
EAN:
Part number:
Item no:
Product type
Cable mount
Fastening method
Screw fixing
Self-adhesive
Bundle Ø (max.)
3 mm
Material
Polyamide 6.6
Features
+ acrylate glue
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€ 1.50
plus VAT.
14-day return policy included
Highlights & Details
HellermannTyton TY8H1S-N66-NA-C1 Cable mount Screw fixing, Self-adhesive 151-12819 Bundle Ø range 3 mm (max) + acrylate glue Ecru 1 pc(s)
- Screwable or self adhesive
Our service for you
Technical specifications
- Flame-retardant according to UL94 V2 (without adhesive).
- Temperature range adhesive: up to +105 °C
- Product type
Cable mount
- Features
+ acrylate glue
- Fastening method
Screw fixing
Self-adhesive
- Bundle Ø range
3 mm (max)
- Bundle Ø (max.)
3 mm
- Material
Polyamide 6.6
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Mounting Ø (min.)
3.20 mm
- Mounting Ø (max.)
3.20 mm
- Factory colour
Ecru
- Halogen-free
No
- Content
1 pc(s)
- Manufacturer part #
151-12819

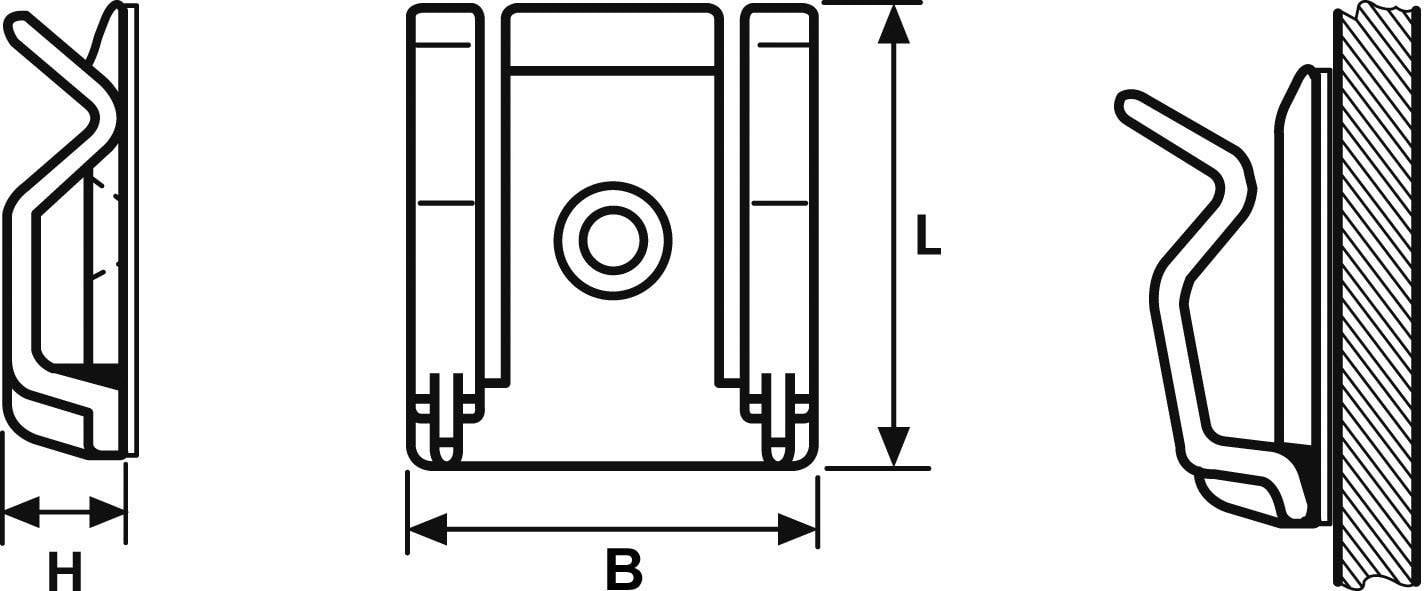

- Dimensions
(L x W x H) 26 x 23 x 6.5 mm
- Width
23 mm
- Height
6.5 mm
- Length
26 mm
- RoHS-compliant
Yes
- Type
TY8H1S-N66-NA-C1
- Material (details)
Polyamide 6.6 (PA66)
- Operating temperature
-40 - +85 ºC, short-term - +105 °C (500 h)
- Temperature range
-40 - +85 ºC, short-term +105 °C (500 h) °C
Documents & Downloads
Datasheet
Datasheet 541951 HellermannTyton TY8H1S-N66-NA-C1 Cable mount Screw fixing, Self-adhesive 151-12819 Bundle Ø range 3 mm (max) + acrylate
User & Safety Instructions
User & Safety Instructions 541951 HellermannTyton TY8H1S-N66-NA-C1 Cable mount Screw fixing, Self-adhesive 151-12819 Bundle Ø range 3 mm (max) + acrylate
Description

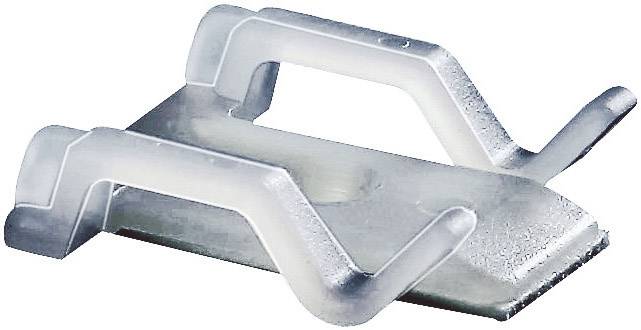

These self-adhesive or screw-mounted cable mounts allow cables, wires or cable harnesses to be fastened quickly and easily without additional cable ties.
Hints
Applications: These cable mounts are ideal for hard-to-reach cable loca Applications: These cable mounts are ideal for hard-to-reach cable locations. The cable mount ASI clip has been especially designed for fastening ASI bus wires securely and gently.tions. The cable mount ASI clip has been especially designed for fastening ASI bus wires securely and gently.
