Buy HellermannTyton VarioPlate-10_Frame-PL-BK Cable grommet halogen-free Polyamide 6.6 Black 1 pc(s)

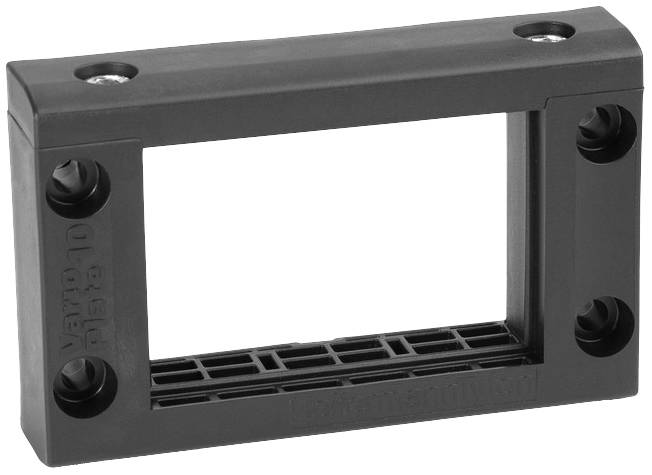

Black rectangular plastic frame with screw holes, usable as a mounting frame for electronic devices or displays.

Product type

Cable grommet

Features

halogen-free

Material

Polyamide 6.6

Clamp Ø

3 mm

Terminal Ø (max.)

33 mm

Fast track dispatch on Thu, 1 Oct

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 30.24 / piece)

€ 30.24

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Flame retardant in accordance with UL94 V0

Product type: Cable grommet

Features: halogen-free

Factory colour: Black

Material: Polyamide 6.6

Length: 61 mm

Width: 96.50 mm

Height: 21 mm

Dim: (L x W x H) 61 x 96.50 x 21 mm

Clamp Ø: 3 mm

Terminal Ø (max.): 33 mm

Min. temperature: -40 °C

Max. temperature: +140 °C

: IP65
IP66

Halogen-free: Yes

Content: 1 pc(s)

Manufacturer part #: 440-00001

Type: VarioPlate-10_Frame-PL-BK

Material properties: halogen-free

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2917487 HellermannTyton VarioPlate-10_Frame-PL-BK Cable grommet halogen-free Polyamide 6.6 Black 1 pc(s)

Description

VarioPlate cable guiding frames are used for the time and space-saving cable installation in switching cabinet casings and switch cabinets of all kinds. The versatile design covers cable diameters from 3 to 33 mm. The separable cable routing frames are used for guiding wires with and without plugs. Due to the flexible inner divisions of the frame, only one frame per cut-out size is needed. Each frame is designed to meet the standardized outbreak dimensions. The integrated seal reliably seals the frame, thus achieving IP 66. An additional sealing is thus unnecessary.
