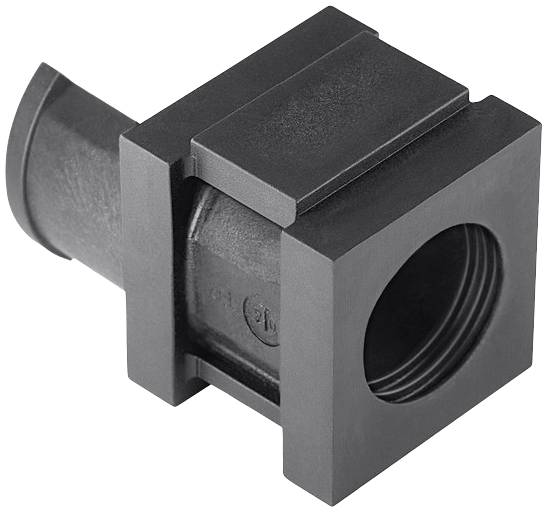

HellermannTyton VP-S_14-15_Ins-sgl-PL-BK Sleeve halogen-free TPE Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sleeve
Features
halogen-free
Material
TPE
Clamp Ø
14 mm
Terminal Ø (max.)
15 mm
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Flame retardant in accordance with UL94 V0
- Cable diameter 14 - 15 mm
- Product type
Sleeve
- Features
halogen-free
- Factory colour
Black
- Material
TPE
- Length
32 mm
- Width
21.10 mm
- Height
20 mm
- Dim
(L x W x H) 32 x 21.10 x 20 mm
- Clamp Ø
14 mm
- Terminal Ø (max.)
15 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP65
IP66
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
440-00016
- Type
VP-S_14-15_Ins-sgl-PL-BK
- Material properties
halogen-free
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2917490 HellermannTyton VP-S_14-15_Ins-sgl-PL-BK Sleeve halogen-free TPE Black 1 pc(s)
Description
VarioPlate cable sleeves are used in combination with VarioPlate frames for time-saving and space-saving cable installation at switch cabinet housings and switch boxes of all kinds. The versatile design covers cable diameters from 3 to 33 mm. Inserts are available as simple grommets, twin sleeves, quadruple grommets and filler plugs.
This text is machine translated.
This text is machine translated.
Features
- Integrated cable diameter-tolerance balancing
- Modular application for both usage sizes (S and L)
- Integrated strain relief
- IP 65 and IP 66
