Buy HELU 29114 Wire H05V-K 1 G 1 mm² Green, Yellow 100 m

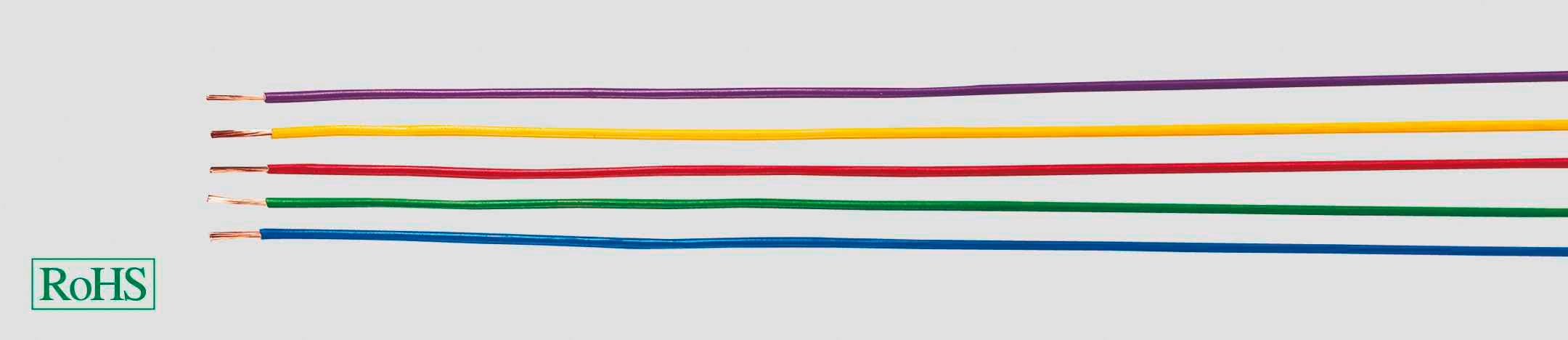

Five colourful, isolated wire strands in a line, from top to bottom purple, yellow, green, red and blue. The RoHS symbol in the bottom left.

Image similar

Product type

Wire

No. of leads

1 G

Cross section (each core)

1 mm²

Cable type

H05V-K

Outside Ø

2.80 mm

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

4 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Packaging units

Quantity (Set(s))

Unit Price

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (1 m = € 0.26)

€ 26.04

plus VAT.

Only 4 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Wire

No. of leads: 1 G

Content: 100 m

Cross section (each core): 1 mm²

Insulation material: Polyvinyl chloride

Cable type: H05V-K

Outside Ø: 2.80 mm

Nominal voltage: 300 V

Packaged: Yes

Halogen-free: No

Manufacturer part #: 29114

Factory colour: Green
Yellow

Core layout: Cu-blank, according to DIN VDE 0295 Class 5, fine, BS 6360 Cl.5, IEC 60228 Class 5

Sold per metre: No

Nominal voltage U0: 500 V

Test voltage: 2000 V

Cross section: 1 G 1 mm²

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -30 °C

Type: H05 V-K

Documents & Downloads

Datasheet

Datasheet 1764254 HELU 29114 Wire H05V-K 1 G 1 mm² Green, Yellow 100 m

User & Safety Instructions

User & Safety Instructions 1764254 HELU 29114 Wire H05V-K 1 G 1 mm² Green, Yellow 100 m
