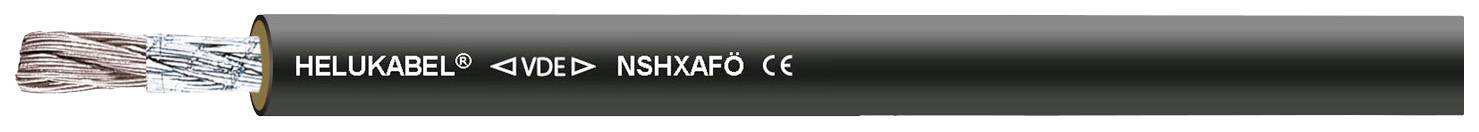

HELU 38519-500 Wire core NSHXAFÖ 1.8/3 kV 1 x 4 mm² Black 500 m
EAN:
Part number:
Item no:
Product type
Wire core
No. of leads
1 x
Cross section (each core)
4 mm²
Cable type
NSHXAFÖ 1.8/3 kV
Outside Ø
6.80 mm
Technical specifications
- Product type
Wire core
- No. of leads
1 x
- Content
500 m
- Cross section (each core)
4 mm²
- Insulation material
Polymer
- Cable features
Oil-resistant
Halogen-free
- Cable type
NSHXAFÖ 1.8/3 kV
- Outside Ø
6.80 mm
- Nominal voltage
3000 V
- Packaged
Yes
- Manufacturer part #
38519-500
- Factory colour
Black
- Sold per metre
No
- Nominal voltage U0
1800 V
- Test voltage
6000 V
- Cross section
1 x 4 mm²
- RoHS-compliant
Yes
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (fixed installation)
+90 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
38519-500
- Standards
EAC; VDE
