HELU 48501-100 Data transfer cable 4 x 0.8 mm² Grey 100 m
EAN:
Part number:
Item no:
Product type
Data transfer cable
No. of leads
4 x
Cross section (each core)
0.8 mm²
Cable features
Shielded
Flame-retardant
Cross section
4 x 0.8 mm²
Datasheet (PDF)
Technical specifications
- Weight 60 kg/km
- Product type
Data transfer cable
- No. of leads
4 x
- Cross section (each core)
0.8 mm²
- Cross section
4 x 0.8 mm²
- Cable features
Shielded
Flame-retardant
- Outside Ø
6.6 mm
- Factory colour
Grey
- Content
100 m
- Bend radius (no. of ODs for fixed installation)
6
- Bend radius (no. of ODs for flexible installation)
0
- Sold per metre
No
- Shielded
Yes
- Manufacturer part #
48501-100
- Insulation material
PVC
- Wire ID code
Core identification according to DIN VDE 0815, color
- Insulation
PVC
- Core layout
Plain copper conductor, single-wire, conductor diameter: 0.80 mm
- RoHS-compliant
Yes
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
50 °C
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
70 °C
- Certification marks
VDE, EAC
- Max. length sold by the metre
100 m
- Type

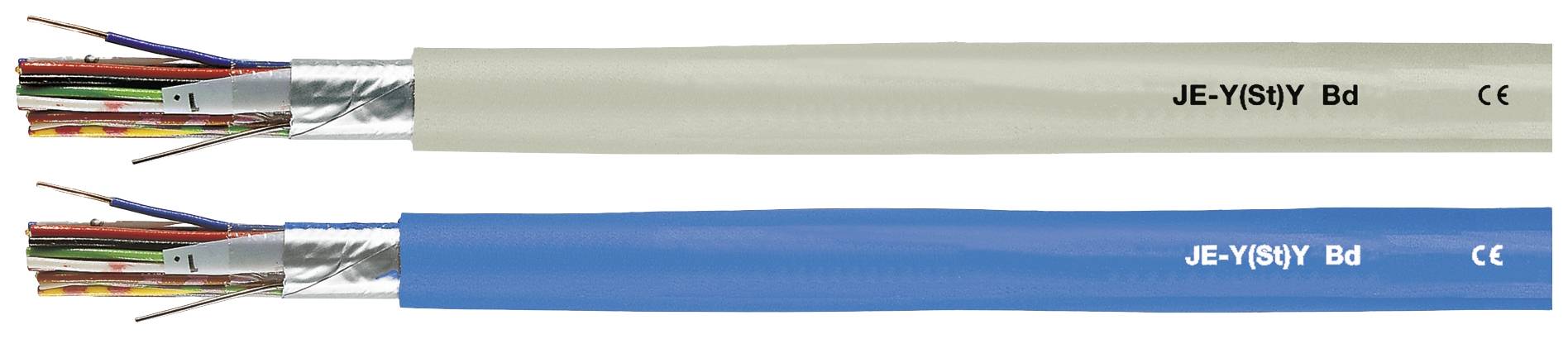

JE-Y(St)Y 2x2x0,8 GR
Documents & Downloads
Datasheet
Datasheet 2826124 HELU 48501-100 Data transfer cable 4 x 0.8 mm² Grey 100 m
User & Safety Instructions
User & Safety Instructions 2826124 HELU 48501-100 Data transfer cable 4 x 0.8 mm² Grey 100 m
Description
The cables are used for the transmission of signals and measured values in symmetrical circuits of control and regulation technology, as well as for the transmission of information in data and process computer systems. Can be used in dry and damp operating sites, as well as in and under plaster, in the open with fixed laying. Installation cables are not approved for heavy current installations or for ground installation.
