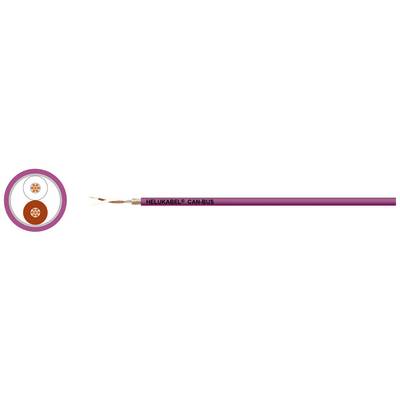

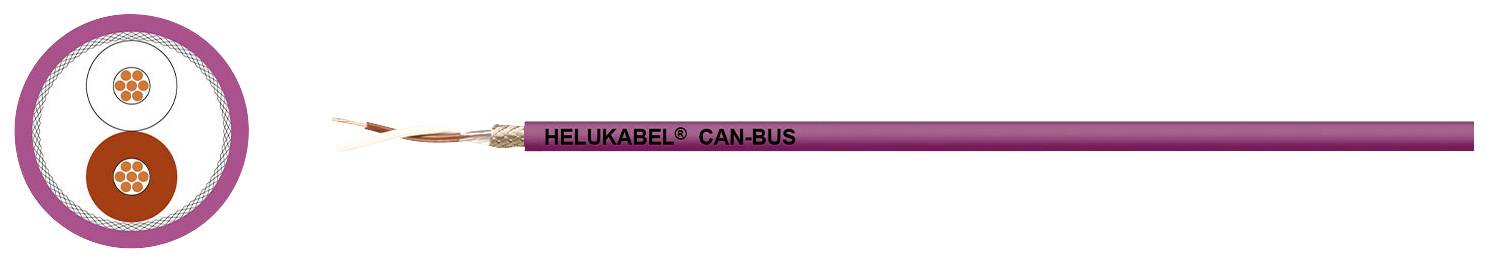

HELU 800685-1000 Bus cable 2 x 2 x 0.5 mm² Violet 1000 m
EAN:
Part number:
Item no:
Product type
Bus cable
No. of leads
4 x
Cross section (each core)
0.5 mm²
Cross section
2 x 2 x 0.5 mm²
Cable features
Flame-retardant
Shielded
Technical specifications
- Product type
Bus cable
- No. of leads
4 x
- Cross section (each core)
0.5 mm²
- Cross section
2 x 2 x 0.5 mm²
- Cable features
Flame-retardant
Shielded
- Outside Ø
8.5 mm
- Factory colour
Violet
- Content
1000 m
- Test voltage
1500 V
- Bend radius (no. of ODs for fixed installation)
10
- Bend radius (no. of ODs for flexible installation)
15
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
800685-1000
- Insulation material
Foam Skin PE
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
70 °C
- Core layout
Copper, blank (AWG 20/7)
- Operating capacity
44 nF/km
- Certification marks
CAN bus acc ISO 11898-2
- RoHS-compliant
Yes
- Wave impedance
120 Ω
- Type
800685-1000
- Twisted pair cabling (part 1)
Yes (1)
