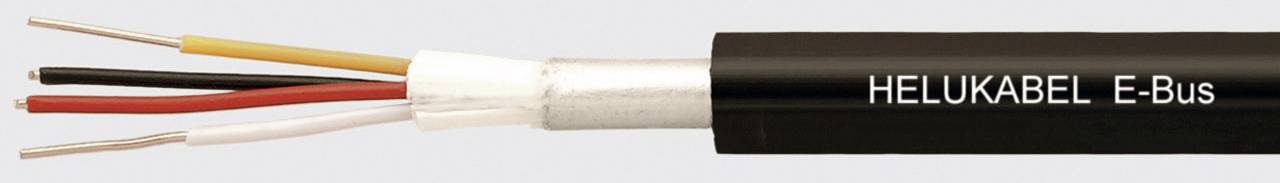

HELU 802800-1000 Bus cable 2 x 2 x 0.5 mm² Black 1000 m
EAN:
Part number:
Item no:
Product type
Bus cable
No. of leads
4 x
Cross section (each core)
0.5 mm²
Cross section
2 x 2 x 0.5 mm²
Cable features
Halogen-free
Metal foil shield
for underground installation
Technical specifications
- Product type
Bus cable
- No. of leads
4 x
- Cross section (each core)
0.5 mm²
- Cross section
2 x 2 x 0.5 mm²
- Cable features
Halogen-free
Metal foil shield
for underground installation
- Outside Ø
8.8 mm
- Factory colour
Black
- Content
1000 m
- Test voltage
800 V
- Bend radius (no. of ODs for fixed installation)
15
- Bend radius (no. of ODs for flexible installation)
15
- Packaged
Yes
- Sold per metre
No
- Halogen-free
Yes
- Manufacturer part #
802800-1000
- Insulation material
PE
- Min. temperature range (fixed installation)
-5 °C
- Max. temperature range (fixed installation)
70 °C
- Core layout
Plain copper
- Operating capacity
55 nF/km
- Certification marks
E-BUS / KNX EARTHING LAID FIXED
- RoHS-compliant
Yes
- Wave impedance
100 Ω
- Type
802800-1000
- Twisted pair cabling (part 1)
Yes (1)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3040484 HELU 802800-1000 Bus cable 2 x 2 x 0.5 mm² Black 1000 m
