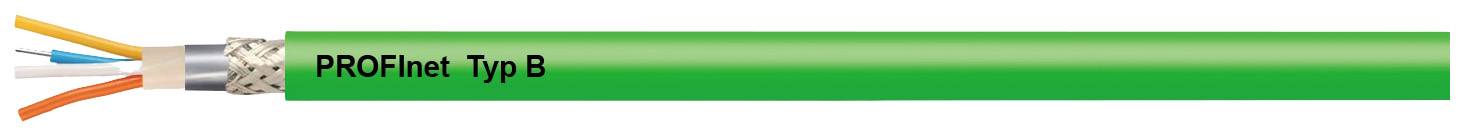

HELU 805654 Bus cable 2 x 2 x 0.36 mm² Green 100 m
EAN:
Part number:
Item no:
Product type
Bus cable
No. of leads
4 x
Cross section (each core)
0.36 mm²
Cross section
2 x 2 x 0.36 mm²
Cable features
Flame-retardant
Shielded
Technical specifications
- Feature: FRNC
- Product type
Bus cable
- No. of leads
4 x
- Cross section (each core)
0.36 mm²
- Cross section
2 x 2 x 0.36 mm²
- Cable features
Flame-retardant
Shielded
- Outside Ø
6.5 mm
- Factory colour
Green
- Content
100 m
- Test voltage
2000 V
- Bend radius (no. of ODs for fixed installation)
10
- Bend radius (no. of ODs for flexible installation)
15.5
- Packaged
Yes
- Sold per metre
No
- Halogen-free
Yes
- Manufacturer part #
805654
- Insulation material
Foam Skin PE
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
75 °C
- Core layout
Copper, tin plated (AWG 22/7)
- Certification marks
PROFINET type B flexible
- Wave impedance
100 Ω
- Type
HELUKAT PROFInet B
- Twisted pair cabling (part 1)
Yes (1)
