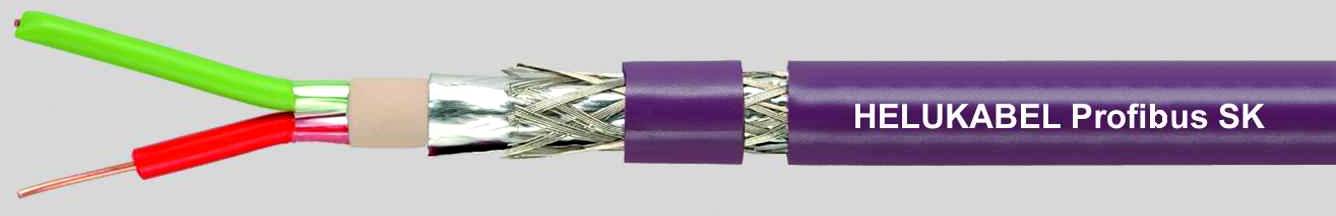

HELU 81903-500 Bus cable 1 x 2 x 0.34 mm² Violet 500 m
EAN:
Part number:
Item no:
Product type
Bus cable
No. of leads
2 x
Cross section (each core)
0.34 mm²
Cross section
1 x 2 x 0.34 mm²
Cable features
Metal foil shield
Braided shield
Flame-retardant
Technical specifications
- Product type
Bus cable
- No. of leads
2 x
- Cross section (each core)
0.34 mm²
- Cross section
1 x 2 x 0.34 mm²
- Cable features
Metal foil shield
Braided shield
Flame-retardant
- Outside Ø
8 mm
- Factory colour
Violet
- Content
500 m
- Test voltage
1500 V
- Bend radius (no. of ODs for fixed installation)
7.5
- Bend radius (no. of ODs for flexible installation)
15
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
81903-500
- Insulation material
Foam Skin PE
- Min. temperature range (fixed installation)
-5 °C
- Max. temperature range (fixed installation)
80 °C
- Core layout
Copper, blank (AWG 22/1)
- Operating capacity
35 nF/km
- Certification marks
Profibus SK installed inside
- RoHS-compliant
Yes
- Wave impedance
150 Ω
- Type
81903-500
- Twisted pair cabling (part 1)
Yes (1)
