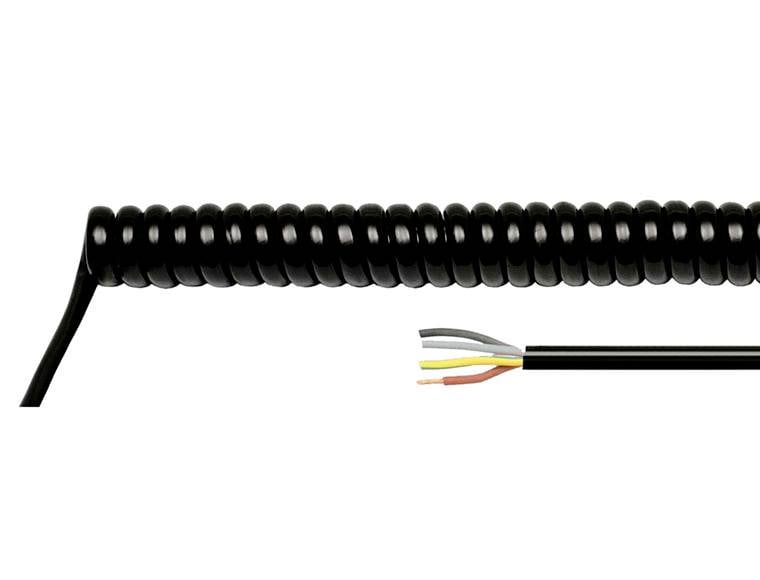

HELU 84911 Spiral cable H05BQ-F 2000 mm / 8000 mm 3 x 1 mm² Black 1 pc(s)
Part number:
Item no:
Product type
Spiral cable
Cable type
H05BQ-F
Spiral length (min.)
2000 mm
Spiral lenght (max.)
8000 mm
No. of leads
3 x
Datasheet (PDF)
Highlights & Details
Spiral cable PUR 2000 mm 3G1 mm² black
- H05BQ-F
- Outer cover: PUR
- 2000 mm - 8000 mm x 26.60 mm
- Extra-fine strand according to VDE 0295
- Class 6
Technical specifications
- High restoring force
- Elongation ratio 1:4
- Abrasion-resistant and notch-tough thanks to PUR-coating
- 200 mm stretched ends on both sides
- Product type
Spiral cable
- Cable type
H05BQ-F
- Spiral length (min.)
2000 mm
- Spiral lenght (max.)
8000 mm
- No. of leads
3 x
- Cross section (each core)
1 mm²
- Cross section
3 x 1 mm²
- Cable features
Abrasion resistant
- Outside Ø
26.4 mm
- Factory colour
Black
- Content
1 pc(s)
- Shielded
No
- Manufacturer part #
84911
- Insulation material
PUR
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (flexible installation)
70 °C
- Core layout
Cu-strand blank
Finely-stranded according to DIN VDE 0295 Class 5 / IEC 60228 Class 5
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
70 °C
- Certification marks
DIN VDE 0293/ 308
- Nominal voltage
500 V
300 V
- Nominal voltage U0
300 V
- Type
Spiralkabel PUR 2000 mm 3G1 mm² schwarz
Documents & Downloads
Datasheet
Datasheet 3767984 HELU 84911 Spiral cable H05BQ-F 2000 mm / 8000 mm 3 x 1 mm² Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3767984 HELU 84911 Spiral cable H05BQ-F 2000 mm / 8000 mm 3 x 1 mm² Black 1 pc(s)
Description
Robust and highly flexible PUR-spiral cable for demanding mechanical loads in industry and trade. Owing to the ratio of expansion of 1:4 and the durable polyurethane outer sheath it is Ideal suitable for use in electrical tools and in mechanical engineering.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x spiral cable with 2000 mm closed spiral length and both sides 200 mm stretched ends.
