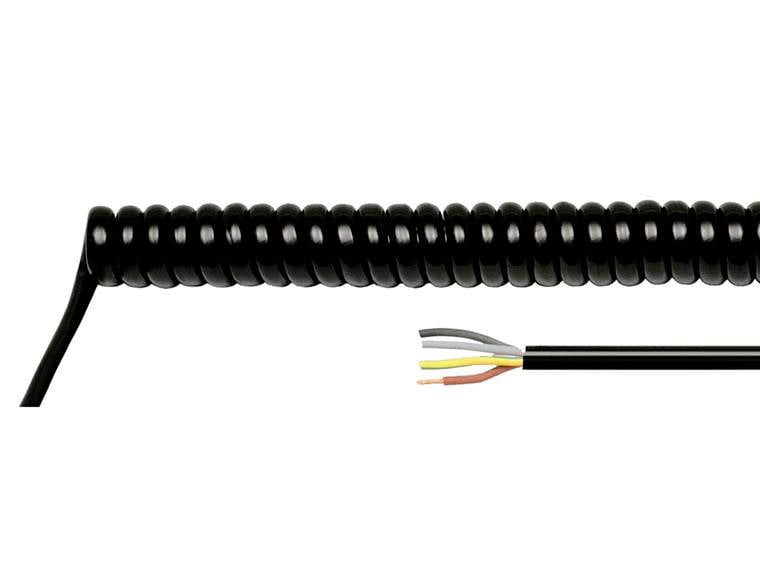

HELU 84972 Spiral cable H07BQ-F 1400 mm / 5600 mm 7 x 1.5 mm² Black 1 pc(s)
Part number:
Item no:
Product type
Spiral cable
Cable type
H07BQ-F
Spiral length (min.)
1400 mm
Spiral lenght (max.)
5600 mm
No. of leads
7 x
Datasheet (PDF)
Highlights & Details
Spiral cable PUR 1400 mm 7X1.5 mm² black
- H07BQ-F
- Outer cover: PUR
- 1400 mm - 5600 mm x 49.60 mm
- Extra-fine strand according to VDE 0295
- Class 6
Technical specifications
- Cu-Number: 1454.1 kg/1000 pcs
- Product type
Spiral cable
- Cable type
H07BQ-F
- Spiral length (min.)
1400 mm
- Spiral lenght (max.)
5600 mm
- No. of leads
7 x
- Cross section (each core)
1.5 mm²
- Cross section
7 x 1.5 mm²
- Cable features
Abrasion resistant
- Outside Ø
46.4 mm
- Factory colour
Black
- Content
1 pc(s)
- Shielded
No
- Manufacturer part #
84972
- Insulation material
PUR
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (flexible installation)
70 °C
- Core layout
Cu-strand blank, fine-wired according to DIN VDE 0295 Class 5 / IEC 60228 Cl. 5
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
70 °C
- Certification marks
DIN VDE 0295, BS 6360, IEC 60228
- Nominal voltage
750 V
450 V
- Wire ID code
According to DIN VDE 0293-308; including protective earth conductor green/yellow
- Nominal voltage U0
450 V
- Type
Spiralkabel PUR 1400 mm 7G1,5 mm² schwarz
Documents & Downloads
Datasheet
Datasheet 3767986 HELU 84972 Spiral cable H07BQ-F 1400 mm / 5600 mm 7 x 1.5 mm² Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3767986 HELU 84972 Spiral cable H07BQ-F 1400 mm / 5600 mm 7 x 1.5 mm² Black 1 pc(s)
Description
Robust and highly flexible PUR-spiral cable for demanding mechanical loads in industry and trade. Owing to the ratio of expansion of 1:4 and the durable polyurethane outer sheath it is Ideal suitable for use in electrical tools and in mechanical engineering.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x spiral cable with 1400 mm closed spiral length and both sides 200 mm stretched ends
