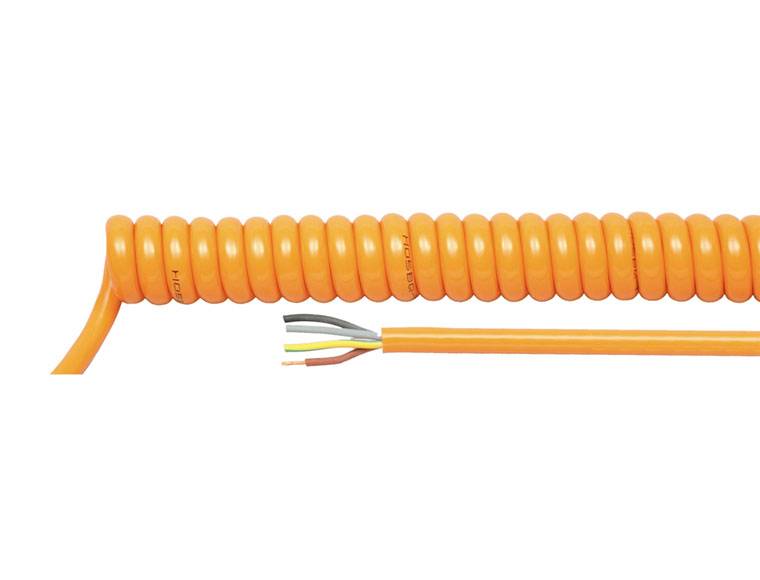

HELU 85243 Spiral cable H05BQ-F 1000 mm / 4000 mm 3 x 0.75 mm² Orange 1 pc(s)
Part number:
Item no:
Product type
Spiral cable
Cable type
H05BQ-F
Spiral length (min.)
1000 mm
Spiral lenght (max.)
4000 mm
No. of leads
3 x
Datasheet (PDF)
Highlights & Details
Spiral cable PUR 1000 mm 3G0.75 mm² orange
- H05BQ-F
- Outer cover: PUR
- 1000 mm - 4000 mm x 25.80 mm
- Extra-fine strand according to VDE 0295
- Class 6
Technical specifications
- Cu-Number: 224.7 kg/1000 pcs.
- Product type
Spiral cable
- Cable type
H05BQ-F
- Spiral length (min.)
1000 mm
- Spiral lenght (max.)
4000 mm
- No. of leads
3 x
- Cross section (each core)
0.75 mm²
- Cross section
3 x 0.75 mm²
- Cable features
Abrasion resistant
- Outside Ø
25.2 mm
- Factory colour
Orange
- Content
1 pc(s)
- Shielded
No
- Manufacturer part #
85243
- Insulation material
PUR
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (flexible installation)
70 °C
- Core layout
Cu-strand blank, fine-wired according to DIN VDE 0295 Class 5 / IEC 60228 Class 5
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
70 °C
- Certification marks
DIN VDE 0295, BS 6360, IEC 60228, WIRE IDENTIFICATION ACCORDING TO DIN VDE 0293-308
- Nominal voltage
500 V
300 V
- Wire ID code
According to DIN VDE 0293-308, including green/yellow protective conductor
- Nominal voltage U0
300 V
- Type
Spiralkabel PUR 1000 mm 3G0,75 mm² orange
Documents & Downloads
Datasheet
Datasheet 3767987 HELU 85243 Spiral cable H05BQ-F 1000 mm / 4000 mm 3 x 0.75 mm² Orange 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3767987 HELU 85243 Spiral cable H05BQ-F 1000 mm / 4000 mm 3 x 0.75 mm² Orange 1 pc(s)
Description
Robust and highly flexible PUR-spiral cable for demanding mechanical loads in industry and trade. Owing to the ratio of expansion of 1:4 and the durable polyurethane outer sheath it is Ideal suitable for use in electrical tools and in mechanical engineering.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x spiral cable with a closed spiral length of 1000 mm and both sides 200 mm stretched ends.
