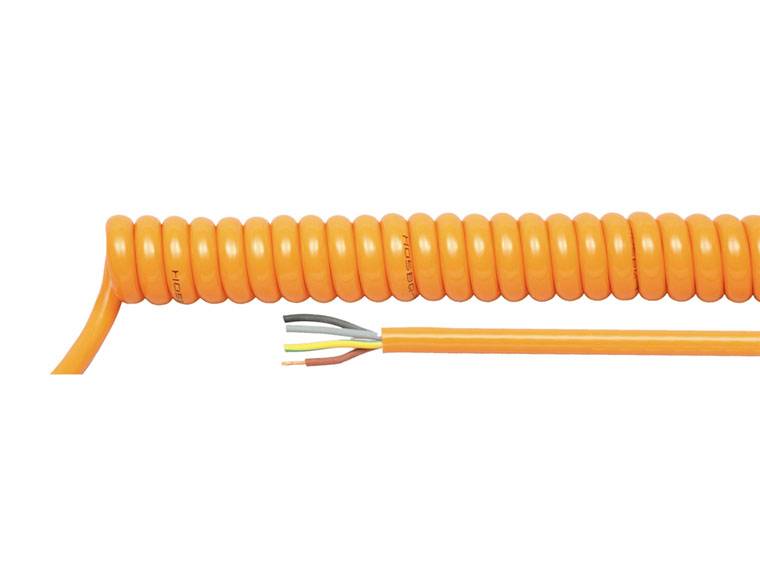

HELU 85357 Spiral cable H07BQ-F 300 mm / 1200 mm 2 x 1.5 mm² Orange 1 pc(s)
Part number:
Item no:
Product type
Spiral cable
Cable type
H07BQ-F
Spiral length (min.)
300 mm
Spiral lenght (max.)
1200 mm
No. of leads
2 x
Datasheet (PDF)
Highlights & Details
Spiral cable PUR 300 mm 2x1.5 mm² orange
- H07BQ-F
- Outer cover: PUR
- 300 mm - 1200 mm x 30.40 mm
- Extra-fine strand according to VDE 0295
- Class 6
Technical specifications
- Cu-Number: 98.6 kg/1000 pcs.
- Product type
Spiral cable
- Cable type
H07BQ-F
- Spiral length (min.)
300 mm
- Spiral lenght (max.)
1200 mm
- No. of leads
2 x
- Cross section (each core)
1.5 mm²
- Cross section
2 x 1.5 mm²
- Cable features
Abrasion resistant
- Outside Ø
30.4 mm
- Factory colour
Orange
- Content
1 pc(s)
- Shielded
No
- Manufacturer part #
85357
- Insulation material
PUR
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (flexible installation)
70 °C
- Core layout
Fine-wired Cu-strand blank according to DIN VDE 0295 Cl. 5, BS 6360 cl. 5 or IEC 60228 CL. 5
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
70 °C
- Certification marks
DIN VDE 0295, BS 6360, IEC 60228, DIN VDE 0293-308
- Nominal voltage
750 V
450 V
- Wire ID code
Complies with DIN VDE 0293-308
- Nominal voltage U0
450 V
- Type
Spiralkabel PUR 300 mm 2x1,5 mm² orange
Documents & Downloads
Datasheet
Datasheet 3767992 HELU 85357 Spiral cable H07BQ-F 300 mm / 1200 mm 2 x 1.5 mm² Orange 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3767992 HELU 85357 Spiral cable H07BQ-F 300 mm / 1200 mm 2 x 1.5 mm² Orange 1 pc(s)
Description
Robust and highly flexible PUR-spiral cable for demanding mechanical loads in industry and trade. Owing to the ratio of expansion of 1:4 and the durable polyurethane outer sheath it is Ideal suitable for use in electrical tools and in mechanical engineering.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x spiral cable with a closed spiral length of 300 mm and both sides 200 mm stretched ends
