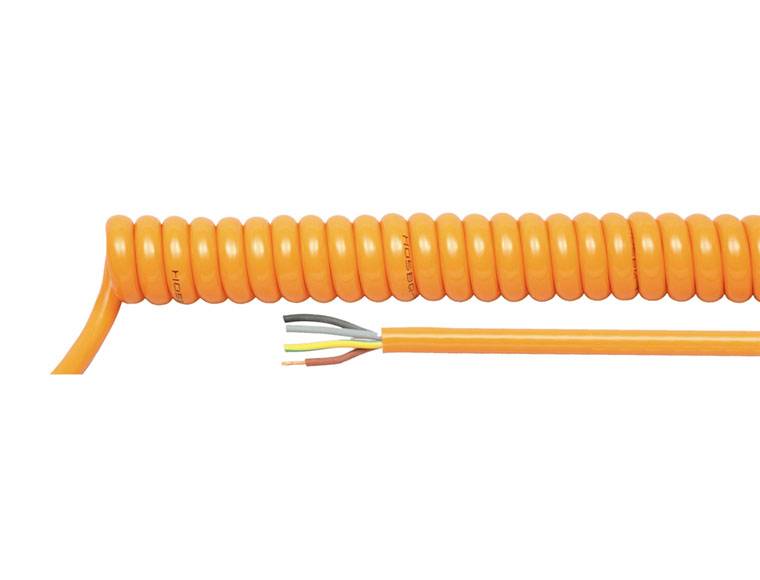

HELU 85459 Spiral cable H07BQ-F 300 mm / 1200 mm 3 x 2.5 mm² Orange 1 pc(s)
Part number:
Item no:
Product type
Spiral cable
Cable type
H07BQ-F
Spiral length (min.)
300 mm
Spiral lenght (max.)
1200 mm
No. of leads
3 x
Datasheet (PDF)
Highlights & Details
Spiral cable PUR 300 mm 3G2.5 mm² orange
- H07BQ-F
- Outer cover: PUR
- 300 mm - 1200 mm x 38.80 mm
- Extra-fine strand according to VDE 0295
- Class 6
Technical specifications
- Cu-Number: 244.8 kg/1000 pcs.
- Product type
Spiral cable
- Cable type
H07BQ-F
- Spiral length (min.)
300 mm
- Spiral lenght (max.)
1200 mm
- No. of leads
3 x
- Cross section (each core)
2.5 mm²
- Cross section
3 x 2.5 mm²
- Cable features
Abrasion resistant
- Outside Ø
38.8 mm
- Factory colour
Orange
- Content
1 pc(s)
- Shielded
No
- Manufacturer part #
85459
- Insulation material
PUR
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (flexible installation)
75 °C
- Core layout
Cu-strand blank, fine-wired according to DIN VDE 0295 Class 5, BS 6360 Cl. 5 or IEC 60228 CL. 5
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
75 °C
- Certification marks
DIN VDE 0295 class 5, BS 6360 class. 5, IEC 60228 CL. 5
- Nominal voltage
450 V
750 V
- Wire ID code
According to DIN VDE 0293-308 with protection conductor green/yellow
- Nominal voltage U0
450 V
- Type
Spiralkabel PUR 300 mm 3G2,5 mm² orange
Documents & Downloads
Datasheet
Datasheet 3767996 HELU 85459 Spiral cable H07BQ-F 300 mm / 1200 mm 3 x 2.5 mm² Orange 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3767996 HELU 85459 Spiral cable H07BQ-F 300 mm / 1200 mm 3 x 2.5 mm² Orange 1 pc(s)
Description
Robust PUR spiral cable in safety color orange for demanding applications in engineering and the construction industry. It is characterized by a high restoring capacity and a stretching ratio of 1:4:1.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x spiral cable with 300 mm closed spiral length and both sides 200 mm stretched ends
