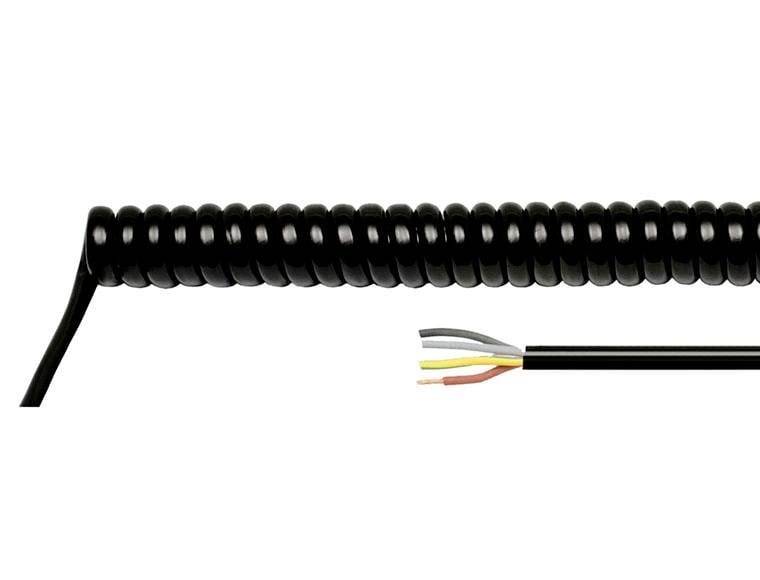

HELU 86375 Spiral cable H05BQ-F 2000 mm / 8000 mm 2 x 1 mm² Black 1 pc(s)
Part number:
Item no:
Product type
Spiral cable
Cable type
H05BQ-F
Spiral length (min.)
2000 mm
Spiral lenght (max.)
8000 mm
No. of leads
2 x
Datasheet (PDF)
Highlights & Details
Spiral cable PUR 2000 mm 2x1 mm² black
- H05BQ-F
- Outer cover: PUR
- 2000 mm - 8000 mm x 25.40 mm
- Extra-finely stranded according to VDE 0295, class 6
Technical specifications
- Cu-Number: 391.7 kg/1000 pcs.
- Product type
Spiral cable
- Cable type
H05BQ-F
- Spiral length (min.)
2000 mm
- Spiral lenght (max.)
8000 mm
- No. of leads
2 x
- Cross section (each core)
1 mm²
- Cross section
2 x 1 mm²
- Outside Ø
25.4 mm
- Factory colour
Black
- Content
1 pc(s)
- Shielded
No
- Manufacturer part #
86375
- Insulation material
PUR
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (flexible installation)
70 °C
- Core layout
Cu-strand blank according to DIN VDE 0295 Class 5, BS 6360 cl.5, IEC 60228 cl.
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
70 °C
- Certification marks
DIN VDE 0295, BS 6360, IEC 60228
- Nominal voltage
300 V
500 V
- Wire ID code
Complies with DIN VDE 0293-308
- Nominal voltage U0
300 V
- Type
Spiralkabel PUR 2000 mm 2x1 mm² schwarz
Documents & Downloads
Datasheet
Datasheet 3768008 HELU 86375 Spiral cable H05BQ-F 2000 mm / 8000 mm 2 x 1 mm² Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3768008 HELU 86375 Spiral cable H05BQ-F 2000 mm / 8000 mm 2 x 1 mm² Black 1 pc(s)
Description
High quality PUR-spiral cable for use in machine building and in the building industry. It offers an excellent restoring capacity with a stretching ratio of 1:4.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 piece spiral cable with 2000 mm closed length and on both sides 200 mm stretched ends
