HELU 99309 PG48 Polyamide Grey-white (RAL 7035) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
PG48
Material
Polyamide
Clamp Ø
34 mm
Terminal Ø (max.)
44 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Factory colour
Grey-white (RAL 7035)
- External thread
PG48
- Material
Polyamide
- Clamp Ø
34 mm
- Terminal Ø (max.)
44 mm
- Thread length
14 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP69K
- Spanner size
65 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
99309
- Type
HELUTOP HT PG
Variants(All information is without VAT, plus shipping costs)
Clamp Ø
Factory colour
Terminal Ø (max.)
External thread
HELU 903532 with reducer seal inset, vibration-protected M12 Polyamide Grey-white (RAL 7035) 1 pc(s)
2 mm
Grey-white (RAL 7035)
5 mm
M12
Minimum order quantity: 5
Multiple: 1
€ 0.29*
HELU 903533 with reducer seal inset, vibration-protected M16 Polyamide Grey-white (RAL 7035) 1 pc(s)
2 mm
Grey-white (RAL 7035)
6 mm
M16
Minimum order quantity: 5
Multiple: 1
€ 0.31*
HELU 903534 with reducer seal inset, vibration-protected M20 Polyamide Grey-white (RAL 7035) 1 pc(s)
5 mm
Grey-white (RAL 7035)
9 mm
M20
Minimum order quantity: 5
Multiple: 1
€ 0.35*
HELU 903535 with reducer seal inset, vibration-protected M25 Polyamide Grey-white (RAL 7035) 1 pc(s)
9 mm
Grey-white (RAL 7035)
13 mm
M25
Minimum order quantity: 2
Multiple: 1
€ 0.57*
HELU 903536 with reducer seal inset, vibration-protected M32 Polyamide Grey-white (RAL 7035) 1 pc(s)
11 mm
Grey-white (RAL 7035)
15 mm
M32
Minimum order quantity: 1
Multiple: 1
€ 1.25*
HELU 903537 with reducer seal inset, vibration-protected M40 Polyamide Grey-white (RAL 7035) 1 pc(s)
16 mm
Grey-white (RAL 7035)
23 mm
M40
Minimum order quantity: 1
Multiple: 1
€ 2.09*
HELU 903539 with reducer seal inset, vibration-protected M63 Polyamide Grey-white (RAL 7035) 1 pc(s)
29 mm
Grey-white (RAL 7035)
35 mm
M63
Minimum order quantity: 1
Multiple: 1
€ 4.61*
HELU 903542 with reducer seal inset, vibration-protected M12 Polyamide Silver-grey (RAL 7001) 1 pc(s)
2 mm
Silver-grey (RAL 7001)
5 mm
M12
Minimum order quantity: 5
Multiple: 1
€ 0.29*
HELU 903543 with reducer seal inset, vibration-protected M16 Polyamide Silver-grey (RAL 7001) 1 pc(s)
2 mm
Silver-grey (RAL 7001)
6 mm
M16
Minimum order quantity: 5
Multiple: 1
€ 0.31*
HELU 903544 with reducer seal inset, vibration-protected M20 Polyamide Silver-grey (RAL 7001) 1 pc(s)
5 mm
Silver-grey (RAL 7001)
9 mm
M20
Minimum order quantity: 5
Multiple: 1
€ 0.35*
Documents & Downloads
Datasheet
Datasheet 1409616 HELU 99309 PG48 Polyamide Grey-white (RAL 7035) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1409616 HELU 99309 PG48 Polyamide Grey-white (RAL 7035) 1 pc(s)
Description
Hints

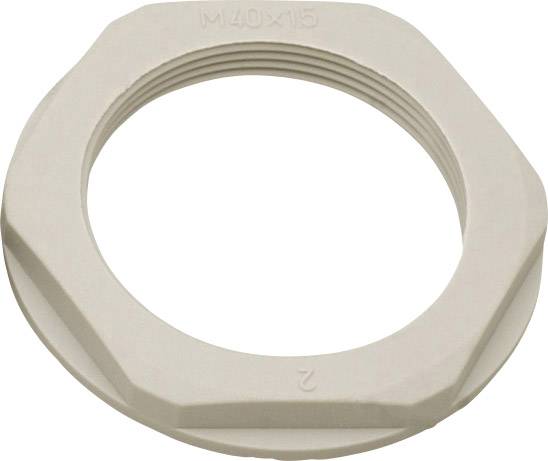

Kindly order the suitable counternut separately.
