HELU Connection cable 3 G 1.5 mm² Blue 11018144-100 100 m
EAN:
Part number:
Item no:
Product type
Connection cable
No. of leads
3 G
Cross section (each core)
1.5 mm²
Outside Ø
7.7 mm
Content
100 m
Datasheet (PDF)
Highlights & Details

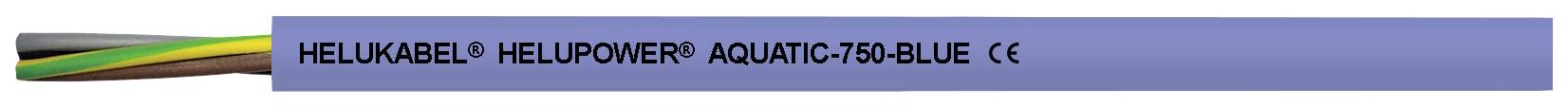

Helukabel AQUATIC-750-BLUE 3G1.5
- Immersion depth up to 600 m.Resistant to drinking waterSafe to use waterSalt Water ResistantChlorine water resistantApproved according to DVGW standard W 270Approved according to WRAS
Technical specifications
- Weight 84 kg/km
- Product type
Connection cable
- No. of leads
3 G
- Content
100 m
- Cross section (each core)
1.5 mm²
- Cable features
Unshielded
incl. PG
- Outside Ø
7.7 mm
- Wire ID code
DIN VDE 0293/ 308
- Type
AQUATIC-750-BLUE 3G1.5
- Bend radius (no. of ODs for fixed installation)
5
- Halogen-free
No
- Manufacturer part #
11018144-100
- Factory colour
Blue
- Insulation material
PVC
- Insulation
Networked special compound
- Core layout
Blank copper, fine-wired according to VDE 0295, class 5
- Max. length sold by the metre
100 m
- Nominal voltage
750 V
- Nominal voltage U0
450 V
- Certification marks
DVGW STANDARD W 270; WRAS
- Cross section
3 G 1.5 mm²
- RoHS-compliant
Yes
- Max. temperature range (flexible installation)
+50 °C
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (fixed installation)
+80 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
AQUATIC-750-BLUE 3G1,5
Documents & Downloads
Datasheet
Datasheet 2825901 HELU Connection cable 3 G 1.5 mm² Blue 11018144-100 100 m
User & Safety Instructions
User & Safety Instructions 2825901 HELU Connection cable 3 G 1.5 mm² Blue 11018144-100 100 m
Description
Special cable with DVGW certification for continuous use in water
