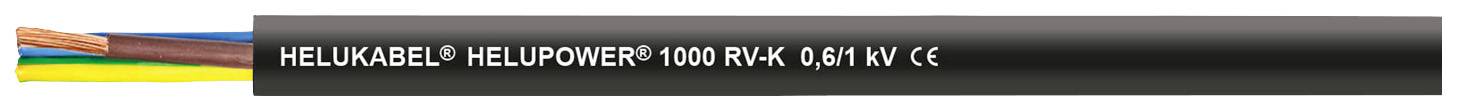

HELU HELUPOWER® 1000 RV-K Connection cable 2 x 1.5 mm² Black 11003799-1000 1000 m
EAN:
Part number:
Item no:
Product type
Connection cable
No. of leads
2 x
Cross section (each core)
1.5 mm²
Cable type
HELUPOWER® 1000 RV-K
Outside Ø
8.50 mm
Technical specifications
- Product type
Connection cable
- No. of leads
2 x
- Content
1000 m
- Cross section (each core)
1.5 mm²
- Cable features
Oil-resistant
Flame-retardant
UV-resistant
High flexural strength
- Cable type
HELUPOWER® 1000 RV-K
- Outside Ø
8.50 mm
- Packaged
Yes
- Bend radius (no. of ODs for fixed installation)
25
- Bend radius (no. of ODs for flexible installation)
10
- Halogen-free
No
- Manufacturer part #
11003799-1000
- Factory colour
Black
- Insulation material
PVC
- Insulation
Special rubber
- Core layout
Plain Cu conductor, DIN VDE 0295 class 5
- Material (details)
Special rubber
- Sold per metre
No
- Nominal voltage
600 V
- Nominal voltage U0
1000 V
- Test voltage
4000
- Cross section
2 x 1.5 mm²
- RoHS-compliant
Yes
- Suited for cable carriers
No
- Max. temperature range (flexible installation)
+90 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+90 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
11003799-1000
- Twisted pair cabling (part 1)
No (0)
- Shielded
No
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3040464 HELU HELUPOWER® 1000 RV-K Connection cable 2 x 1.5 mm² Black 11003799-1000 1000 m
