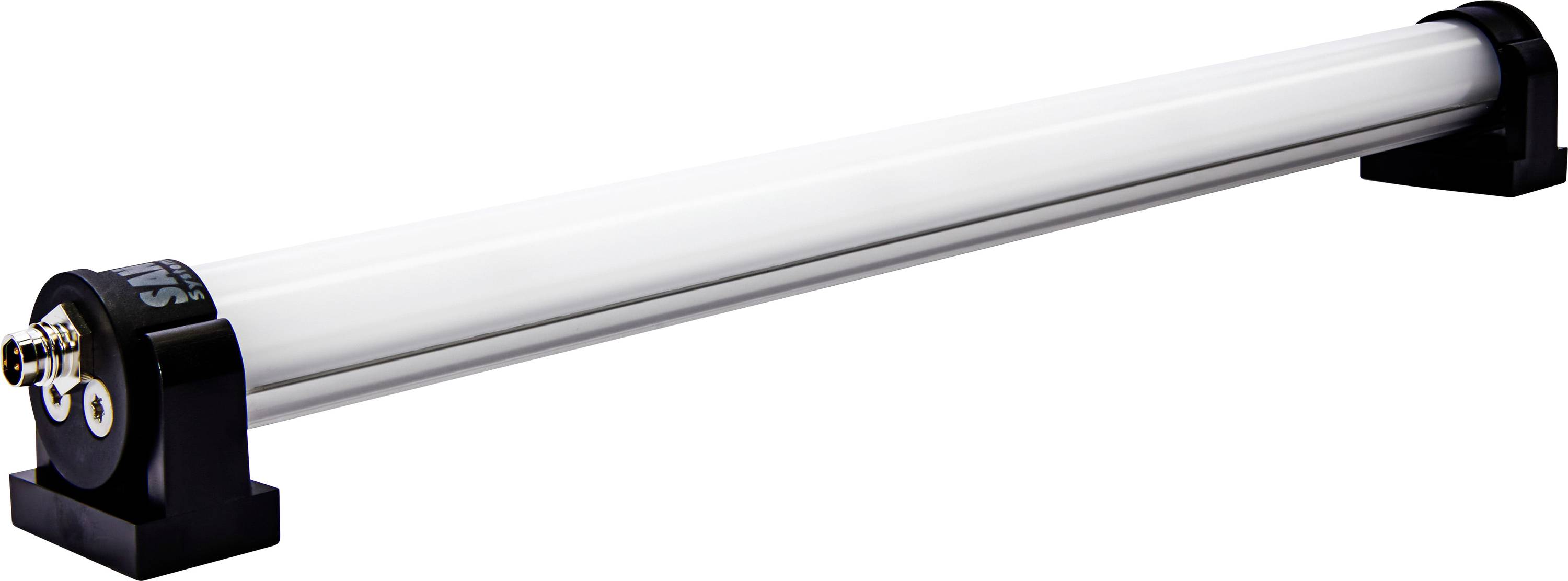

HELU Industrial LED indicator light HELULIGHT® CLASSIC-RGB 140 RGB 2.7 W 120 ° (L x W x H) 166.50 x 35 x 35.50 mm 1 pc(s
EAN:
Part number:
Item no:
Product type
Industrial LED indicator light
Power
2.7 W
IP rating
IP54
Energy efficiency rating
n.rel.
Type
HELULIGHT® CLASSIC-RGB 140
Datasheet (PDF)
Technical specifications
- Colour of housing: Anodised natural
- Material cover: PMMA
- Cover: Diffuse
- Variant connection: Flange, built-in connection socket
- Connection number of pins: 4
- Coding: A coded
- Looped through: No.
- Mounting: Rotatable
- Illuminated length 140 mm
- Hole spacing
- : 150 mm
- Product weight without packaging (g): 105
- Luminous flux, red: 22 lm
- Luminous flux green: 36 lm
- Light current blue: 14 lm
- Power red 1.1 W
- Power green 0.5 W
- Output blue 1.2 W
- Dimmable: External PWM
- Lamp life 60,000 h
- Surface temperature lamp: Label D.
- Product type
Industrial LED indicator light
- Type
HELULIGHT® CLASSIC-RGB 140
- LED features
dimmable
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
2.7 W
- Factory colour
RGB
- Radiation angle
120°
- Connection
M8 plug
- Material
Aluminium
IP54
- Protection class
III
- Min. temperature
-20 °C
- Max. temperature
50 °C
- Length
166.50 mm
- Width
35 mm
- Height
35.50 mm
- Dim
(L x W x H) 166.50 x 35 x 35.50 mm
- RoHS-compliant
Yes
n.rel.
Documents & Downloads
Datasheet
Datasheet 3369385 HELU Industrial LED indicator light HELULIGHT® CLASSIC-RGB 140 RGB 2.7 W 120 ° (L x W x H) 166.50 x 35 x 35.50 mm 1 pc(s
User & Safety Instructions
User & Safety Instructions 3369385 HELU Industrial LED indicator light HELULIGHT® CLASSIC-RGB 140 RGB 2.7 W 120 ° (L x W x H) 166.50 x 35 x 35.50 mm 1 pc(s
Description
Scope of delivery
- 2x End holders
- This text is machine translated.
