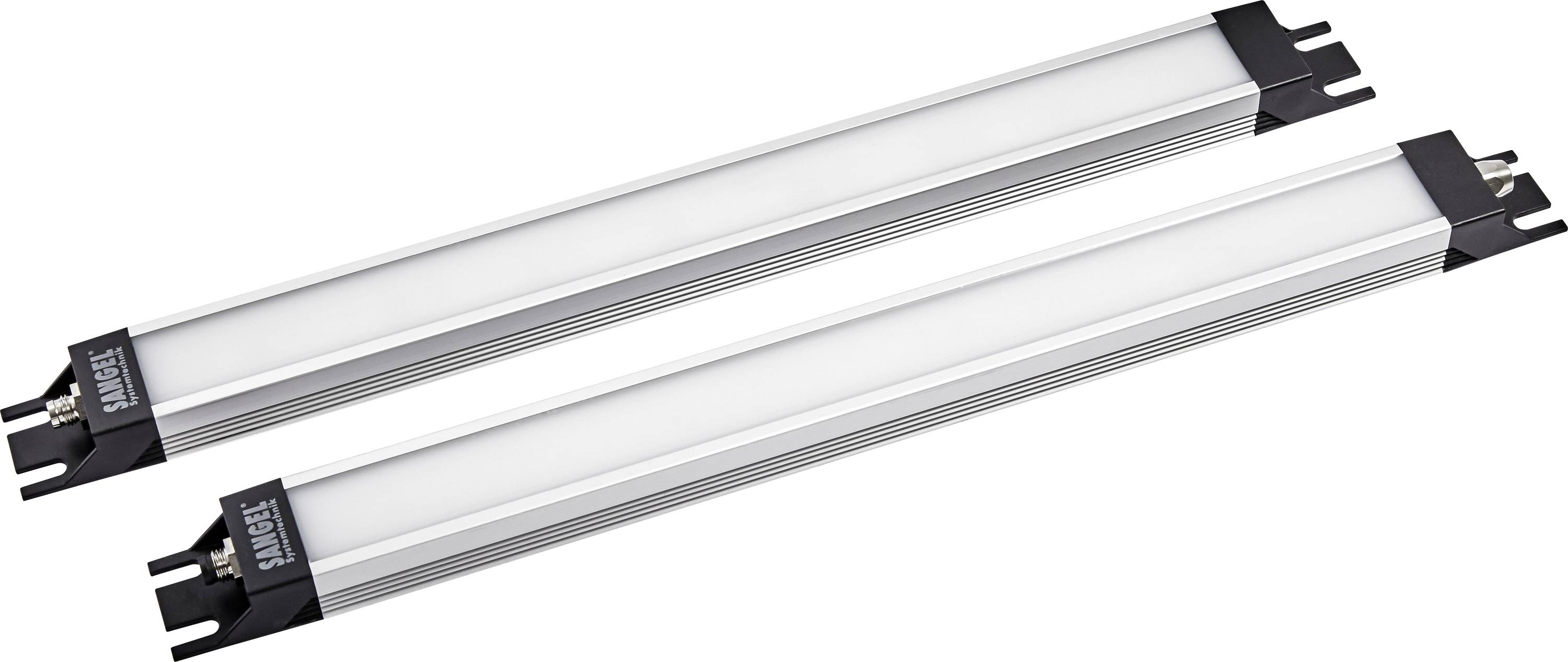

HELU Industrial LED indicator light HELULIGHT® STATIC-RGBW 280D RGBW 20.4 W 448 lm 100 ° (L x W x H) 355 x 30 x 17.50 mm
EAN:
Part number:
Item no:
Product type
Industrial LED indicator light
Power
20.4 W
Luminous flux (Φ)
448 lm
IP rating
IP69K
Energy efficiency rating
n.rel.
Datasheet (PDF)
Technical specifications
- Colour of housing: Anodised natural
- Material cover PU
- Cover: Diffuse
- Variant connection: Flange, built-in connection socket
- Connection number of pins: 5
- Coding: B coded
- Looped through: Yes, up to max. 4 A in line
- Mounting: Rigid
- Illuminated length 280 mm
- Hole spacing
- : 343 mm.
- Product weight without packaging (g): 282
- Color fidelity CRI: 80
- Max. Illumination 137 lx
- Luminous flux: White: 448 lm
- Luminous flux, red: 65 lm
- Luminous flux green: 169 lm
- Light current blue: 38 lm
- Output white 8.6 W
- Power red 4 W
- Power green 3.9 W
- Output blue 3.8 W
- Dimmable: External PWM
- Lamp life 60,000 h
- Surface temperature lamp: Label D.
- Product type
Industrial LED indicator light
- Type
HELULIGHT® STATIC-RGBW 280D
- LED features
dimmable
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
20.4 W
- Factory colour
RGBW
- Colour temperature (max.)
6500 K
- Luminous flux (Φ)
448 lm
- Radiation angle
100°
- Connection
M8 plug
- Material
Aluminium
IP69K
- Protection class
III
- Min. temperature
-20 °C
- Max. temperature
50 °C
- Length
355 mm
- Width
30 mm
- Height
17.50 mm
- Dim
(L x W x H) 355 x 30 x 17.50 mm
- RoHS-compliant
Yes
n.rel.
