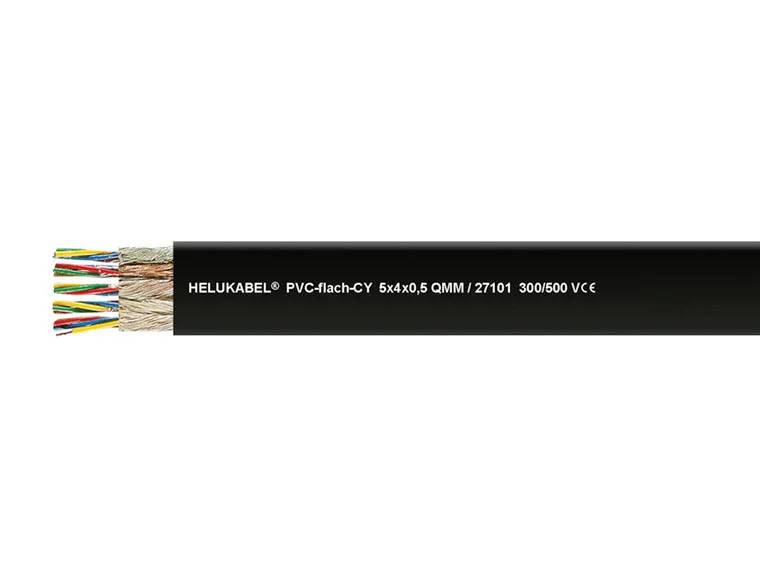

HELU PVC Ribbon cable 20 x 0.50 mm² Black 27101-500 500 m
EAN:
Part number:
Item no:
Product type
Ribbon cable
No. of leads
20 x
Cross section (each core)
0.50 mm²
Cable type
PVC
Content
500 m
Technical specifications
- Cable dimensions 37.4 x 7.2 mm
- Weight 280 kg/km
- Product type
Ribbon cable
- No. of leads
20 x
- Content
500 m
- Cross section (each core)
0.50 mm²
- Cable features
ribbon
Shielded
Oil-resistant
Flame-retardant
- Cable type
PVC
- Wire ID code
Wire identification see data sheet
- Manufacturer part #
27101-500
- Factory colour
Black
- Insulation material
PVC
- Insulation
PVC
- Core layout
Cu-strand blank, fine-wired according to DIN VDE 0295 Class 5 / IEC 60228 Cl. 5
- Max. length sold by the metre
500 m
- Nominal voltage
500 V
- Nominal voltage U0
300 V
- Certification marks
EAC
- Cross section
20 x 0.50 mm²
- RoHS-compliant
Yes
- Max. temperature range (flexible installation)
70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
80 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
PVC-flach-CY 5x4x0,5
- Nominal voltage (details)
500 V
- Shielded
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2826689 HELU PVC Ribbon cable 20 x 0.50 mm² Black 27101-500 500 m
Description
PVC flat cables are mainly used as towing cables for crane systems, industrial conveyor systems and shelving systems.
