Buy HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² Green 802471 50 m

Cable with the marking 'HELUKABEL BUS HMCB200', green outer sheathing, exposed wire, suitable for industrial data communication.

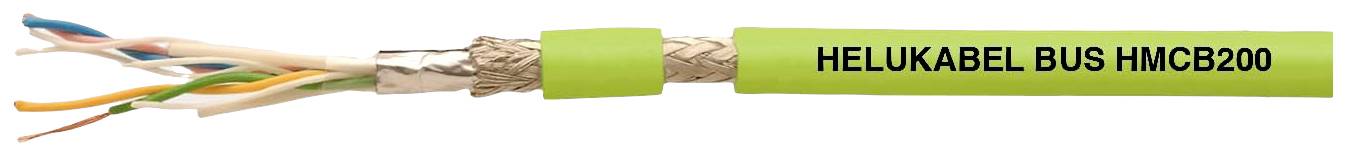

A green cable with the inscription 'HELUKABEL BUS HMCB200' shows isolated internal wiring in various colours.

A green cable with the inscription 'HELUKABEL BUS HMCB200', shows a section with exposed, colourful wires.

1/3

Product type

Resolver cable

No. of leads

4 x

Cross section (each core)

0.22 mm²

Cable type

TOPGEBER 511

Outside Ø

6.85 mm

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Resolver cable

No. of leads: 4 x

Content: 50 m

Cross section (each core): 0.22 mm²

Cable features: Oil-resistant
Shielded
Flame-retardant

Cable type: TOPGEBER 511

Outside Ø: 6.85 mm

Bend radius (no. of ODs for fixed installation): 6

Bend radius (no. of ODs for flexible installation): 15

Halogen-free: No

Manufacturer part #: 802471

Factory colour: Green

Core layout: CU, finely stranded according to DIN EN 60228, class 5

Material (details): PVC

Nominal voltage U0: 30 V

Test voltage: 1500 V

Cross section: 4 x 0.22 mm²

Max. temperature range (flexible installation): +60 °C

Min. temperature range (flexible installation): 0 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -20 °C

Type: 802471

Variants(All information is without VAT, plus shipping costs)

No. of leads

Content

Cable type

Cross section (each core)

Outside Ø

Product type

Cable features

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² Green 802471 50 m

Item no:2469211

This article

4 x

50 m

TOPGEBER 511

0.22 mm²

6.85 mm

Resolver cable

Oil-resistantShieldedFlame-retardant

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² + 2 x 0.34 mm² Green 803672 100 m

Item no:2469207

4 x

100 m

TOPGEBER 511

0.22 mm²

6.95 mm

Resolver cable

Oil-resistantShieldedFlame-retardant

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² + 2 x 0.34 mm² Green 803672 50 m

Item no:2469208

4 x

50 m

TOPGEBER 511

0.22 mm²

6.95 mm

Resolver cable

Oil-resistantShieldedFlame-retardant

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² + 2 x 0.34 mm² Green 803672 500 m

Item no:2469209

4 x

500 m

TOPGEBER 511

0.22 mm²

6.95 mm

Resolver cable

Oil-resistantShieldedFlame-retardant

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² Green 802471 100 m

Item no:2469210

4 x

100 m

TOPGEBER 511

0.22 mm²

6.85 mm

Resolver cable

Oil-resistantShieldedFlame-retardant

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² Green 802471 500 m

Item no:2469212

4 x

500 m

TOPGEBER 511

0.22 mm²

6.85 mm

Resolver cable

Oil-resistantShieldedFlame-retardant

HELU TOPGEBER 511 Resolver cable 6 x 0.14 mm² + 4 x 0.14 mm² Green 707389 100 m

Item no:2469213

6 x

100 m

TOPGEBER 511

0.14 mm²

8.80 mm

Resolver cable

Oil-resistantShieldedFlame-retardant

HELU TOPGEBER 511 Resolver cable 6 x 0.14 mm² + 4 x 0.14 mm² Green 707389 50 m

Item no:2469214

6 x

50 m

TOPGEBER 511

0.14 mm²

8.80 mm

Resolver cable

Oil-resistantShieldedFlame-retardant

HELU TOPGEBER 511 Resolver cable 6 x 0.14 mm² + 4 x 0.14 mm² Green 707389 500 m

Item no:2469215

6 x

500 m

TOPGEBER 511

0.14 mm²

8.80 mm

Resolver cable

Oil-resistantShieldedFlame-retardant

HELU TOPGEBER 511 Resolver cable 6 x 0.14 mm² + 4 x 0.14 mm² Green 707390 100 m

Item no:2469216

6 x

100 m

TOPGEBER 511

0.14 mm²

9.40 mm

Resolver cable

Oil-resistantShieldedFlame-retardant
