Buy HELU TOPGEBER 512 Resolver cable 4 x 0.18 mm² Green 700653 100 m

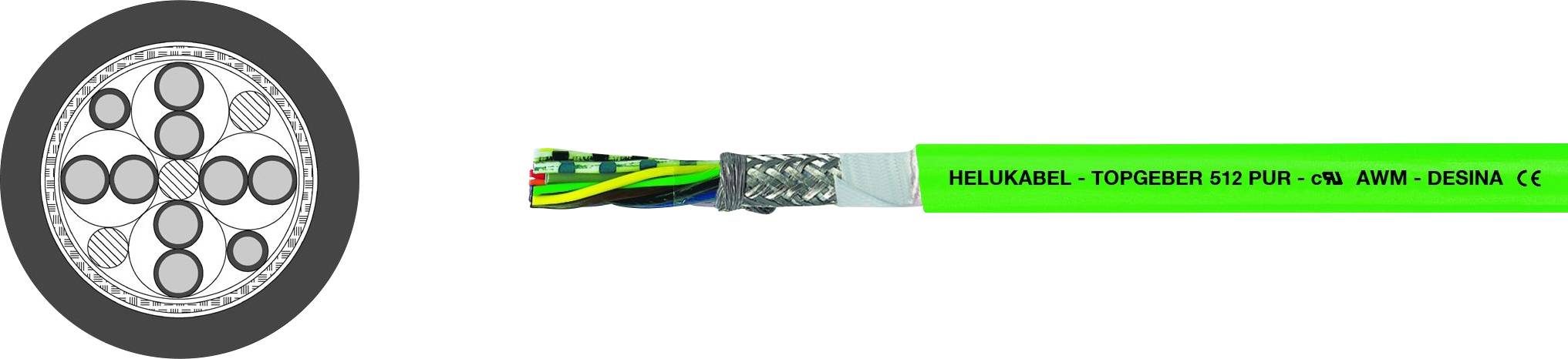

Cross-section of a cable with a green outer jacket, showing internal conductor arrangement and shielding, marked with 'HELUKABEL' and certifications.

Image similar

Product type

Resolver cable

No. of leads

4 x

Cross section (each core)

0.18 mm²

Cable type

TOPGEBER 512

Outside Ø

5.00 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Resolver cable

No. of leads: 4 x

Content: 100 m

Cross section (each core): 0.18 mm²

Cable features: Suitable for drag chains
UV-resistant
Oil-resistant
Shielded
Flame-retardant

Cable type: TOPGEBER 512

Outside Ø: 5.00 mm

Bend radius (no. of ODs for fixed installation): 6

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: Yes

Manufacturer part #: 700653

Factory colour: Green

Core layout: CU, extra-fine strand to DIN EN 60228, class 6

Material (details): PUR

Nominal voltage U0: 30 V

Test voltage: 2000 V

Cross section: 4 x 0.18 mm²

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -30 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 700653
