Buy HELU TOPSERV® 108 Servo lead 4 G 4 mm² Orange 707252 100 m

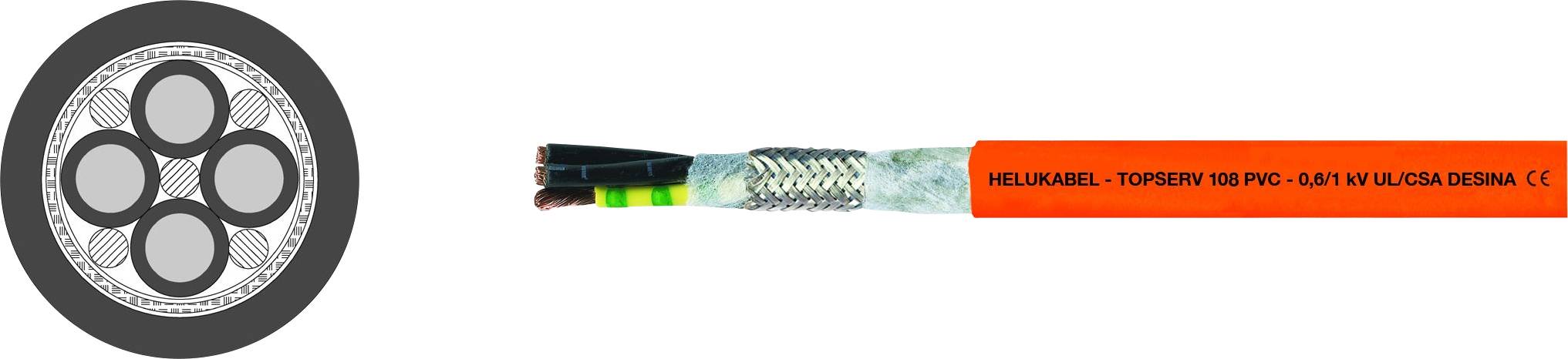

'Cross-section of a five-core cable' on the left, 'orange cable sheath with labelling' on the right.

Image similar

Product type

Servo lead

No. of leads

4 G

Cross section (each core)

4 mm²

Cable type

TOPSERV® 108

Outside Ø

11.00 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Servo lead

No. of leads: 4 G

Content: 100 m

Cross section (each core): 4 mm²

Cable features: Oil-resistant
Shielded
Flame-retardant

Cable type: TOPSERV® 108

Outside Ø: 11.00 mm

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 15

Halogen-free: No

Manufacturer part #: 707252

Factory colour: Orange

Core layout: Plain copper, fine strand to DIN EN 60228, class 5

Material (details): PVC

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Test voltage: 4000 V

Cross section: 4 G 4 mm²

Max. temperature range (flexible installation): +60 °C

Min. temperature range (flexible installation): 0 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -20 °C

Type: 707252
