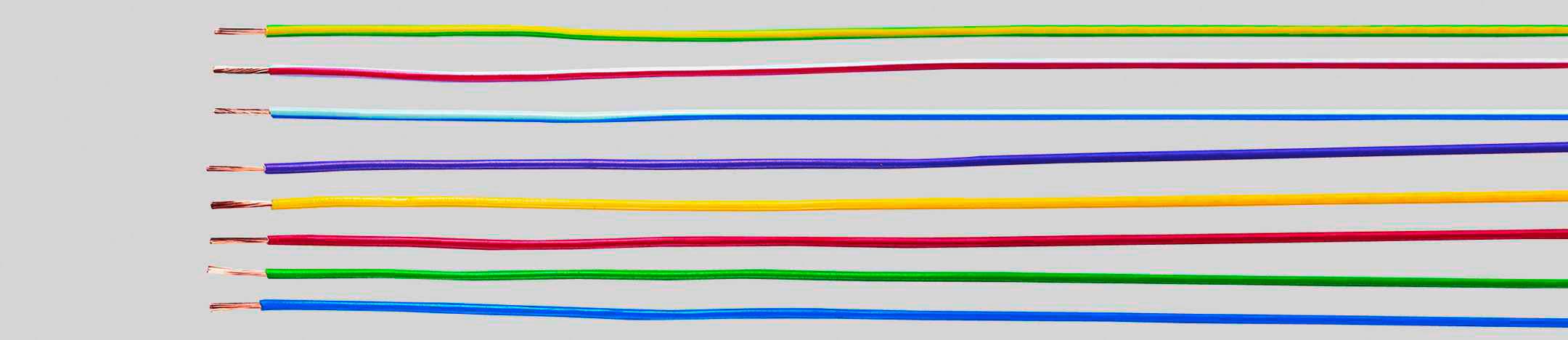

HELU 29179 Wire H07V-K 1 x 6 mm² Blue 100 m
EAN:
Part number:
Item no:
Product type
Wire
No. of leads
1 x
Cross section (each core)
6 mm²
Cable type
H07V-K
Outside Ø
5.30 mm
Datasheet (PDF)
Number
Total (1 m = € 1.72)
€ 172.26
plus VAT.
Only 3 Set(s) available
Technical specifications
- Product type
Wire
- No. of leads
1 x
- Content
100 m
- Cross section (each core)
6 mm²
- Insulation material
PVC
- Cable features
Flexible
- Cable type
H07V-K
- Outside Ø
5.30 mm
- Nominal voltage
750 V
- Packaged
Yes
- Halogen-free
No
- Manufacturer part #
29179
- Factory colour
Blue
- Core layout
Copper stranded conductor, according to DIN VDE 0295 Class 5 fine
- Sold per metre
No
- Nominal voltage U0
450 V
- Test voltage
2500 V
- Cross section
1 x 6 mm²
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+80 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
H07V-K
Documents & Downloads
Datasheet
Datasheet 1764324 HELU 29179 Wire H07V-K 1 x 6 mm² Blue 100 m
User & Safety Instructions
User & Safety Instructions 1764324 HELU 29179 Wire H07V-K 1 x 6 mm² Blue 100 m
