HELU 400151 Cable combo HELUSOUND DMX+POWER 1 x 2 x 0.25 mm² + 1.5 G 2 x 1.5 mm² Black Sold per metre
EAN:
Part number:
Item no:
Product type
Cable combo
Cable type
HELUSOUND DMX+POWER
No. of leads
2 x
Cross section (each core)
0.25 mm²
No. of leads (part 2)
3 G
Datasheet (PDF)
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Technical specifications
- Conductor resistance: 53 Ω/km
- Product type
Cable combo
- Cable type
HELUSOUND DMX+POWER
- No. of leads
2 x
- Cross section (each core)
0.25 mm²
- No. of leads (part 2)
3 G
- Cross section (each core) (part 2)
1.5 mm²
- Cross section
1 x 2 x 0.25 mm² + 1.5 G 2 x 1.5 mm²
- Cable features
Shielded
Cold-resistant
- Outside Ø
13.20 mm
- Factory colour
Black
- Content
Sold per metre
- Bend radius (no. of ODs for fixed installation)
5
- Packaged
No
- Sold per metre
Yes
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
400151
- Insulation material
PVC
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (flexible installation)
-30 °C
- Max. temperature range (flexible installation)
+70 °C
- Core layout
Plain copper
- Type
HELUSOUND DMX+Power
- Max. length sold by the metre
100 m
- Twisted pair cabling (part 1)
Yes (1)
- Twisted pair cabling (yes/no)
Yes (1)
Documents & Downloads
Datasheet
Datasheet 558440 HELU 400151 Cable combo HELUSOUND DMX+POWER 1 x 2 x 0.25 mm² + 1.5 G 2 x 1.5 mm² Black Sold per metre
User & Safety Instructions
User & Safety Instructions 558440 HELU 400151 Cable combo HELUSOUND DMX+POWER 1 x 2 x 0.25 mm² + 1.5 G 2 x 1.5 mm² Black Sold per metre
Description

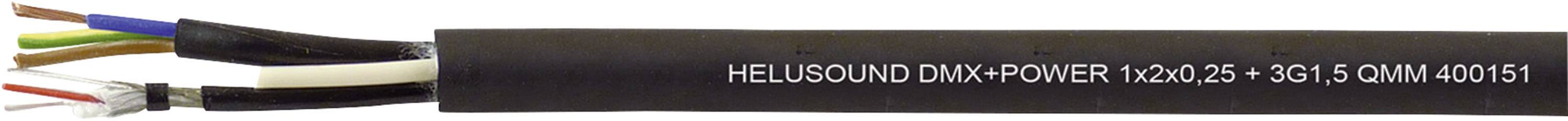

The HELUSOUND ® DMX + POWER combination cable combines a shielded light control cable and power supply line. By a tin-plated copper braid shielded DMX cable is best suited for the control of lighting systems and mixing desks (110 Ohm impedance). It impresses with its soft PVC sheath and is suitable for use in the indoor as well as outdoor installation. The DMX cable can also be used for the transmission of audio signals, for example as a microphone cable or in feed for active speaker systems.
