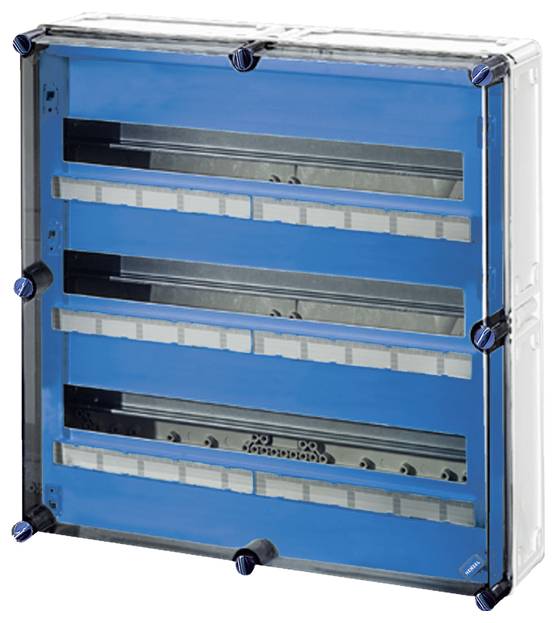

Hensel 20001034 Hensel machine housing 84TE Mi 1884 Module junction box Plastic Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Module junction box
Factory colour
Grey
Dim

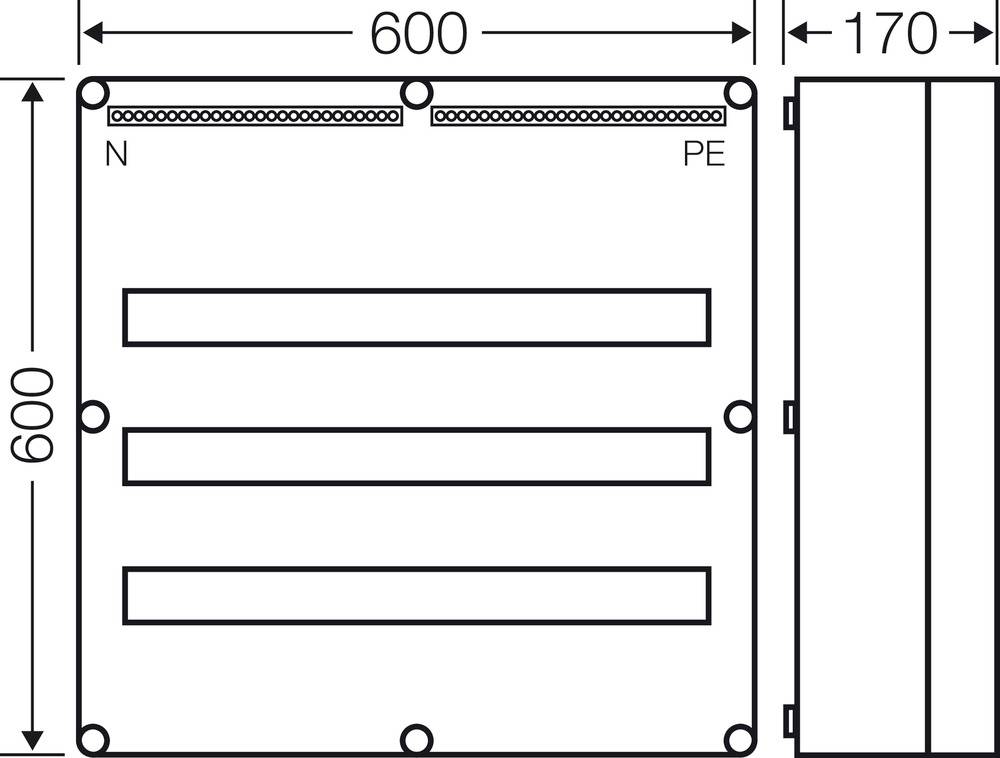

(W x H x D) 600.00 x 600.00 x 170.00 mm
Content
1 pc(s)
Material
Plastic
Technical specifications
- Mounting type: Surface-mounted
- Number of rows: 3
- Width in division units: 28
- Type of cover: Cover
- Cover version: Closed
- Transparent lid/door: Yes
- Housing material: Plastic
- Height: 600 mm
- Width 600 mm
- Depth: 170 mm
- Installation depth: 93 mm
- Internal depth 146 mm
- DIN rail: Yes
- With mounting plate: No.
- Mounting option: Yes
- EMC type: No.
- Colour: grey
- RAL number: 7035
- Protection class (IP) IP65
- With lock: No.
- Product type
Module junction box
- Factory colour
Grey
- Dim
(W x H x D) 600.00 x 600.00 x 170.00 mm
- Content
1 pc(s)
- Material
Plastic
- Width
600.00 mm
- Height
600.00 mm
- Depth
170.00 mm
IP65
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163027 Hensel 20001034 Hensel machine housing 84TE Mi 1884 Module junction box Plastic Grey 1 pc(s)
Description
Housing for the building of energy-switching device combinations up to 630 A, or as individual housing. Made of high-quality polycarbonate with protective insulation. Wall penetrations with large openings for the electrical connection of the casings with each other. Cable entry at all housing walls by metric knockouts or extension flanges. Case for wall mounting even on external lugs or with mounting rails. Machine casing with 84 division units for installation of DIN 43880 series installation devices. With PE and N terminals for copper conductors. N separable for different potentials. With cover strip for closing unused device sections and labeling strips for circuit identification. Transparent cover, lid closures for manual operation. With removable support frame and earthing connection. Cable entry only possible via mounting flange.
