Hensel 20001442 20001442 Switchboard cabinet Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Busbar
Height
502 mm
Content
1 pc(s)
IP rating
IP65
Technical specifications
- Fuse disconnect housing features: With fuse disconnect switch
- Number of poles: 3
- Rated operating current Ie: 100 A.
- Rated insulation voltage UI 400 V
- Fuse size: NH00
- With fuse monitoring: No.

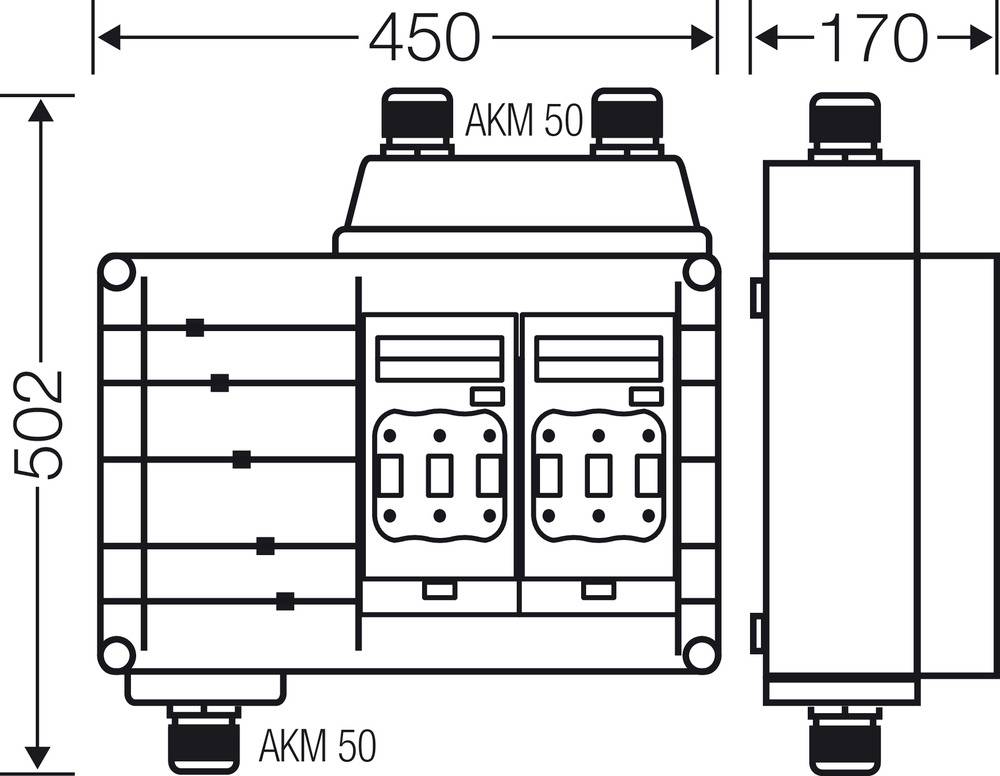

- Housing height 502 mm
- Protection class (IP) IP65
- Product type
Switchboard cabinet
- Mounting type
Busbar
- Height
502 mm
- Content
1 pc(s)
IP65
- Number of pins
3
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162400 Hensel 20001442 20001442 Switchboard cabinet Content 1 pc(s)
Description

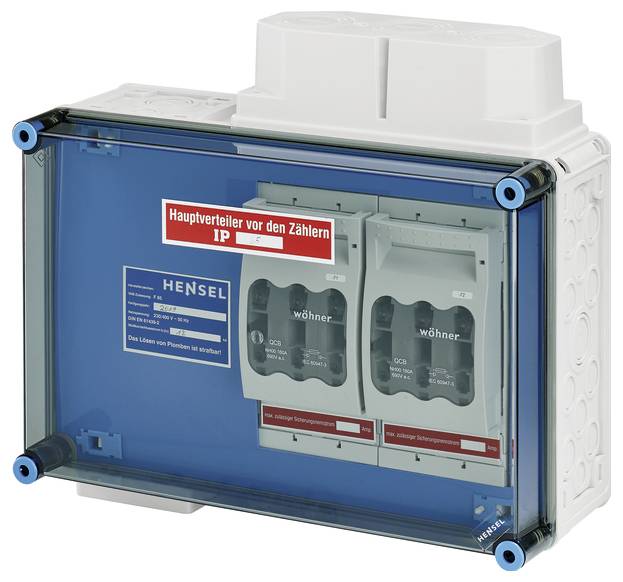

Ready to connect main line distributor for the pre-meter area, lead sealable, with 2 fuse circuit breakers NH 00, 3-pole, on 5-pole busbar system 250 A. Use in the unmeasured area according to agreement with local network operator.
