Hensel 20001501 20001501 Switchboard cabinet Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Wall
Height
866 mm
Content
1 pc(s)
IP rating
IP54
Technical specifications
- Fuse disconnect housing features: With fuse disconnect switch
- Number of poles: 3
- Rated operating current Ie: 120 A.
- Max. Rated operating voltage Ue at AC: 800 V
- Rated insulation voltage UI 690 V
- Fuse size: NH00
- With fuse monitoring: No.

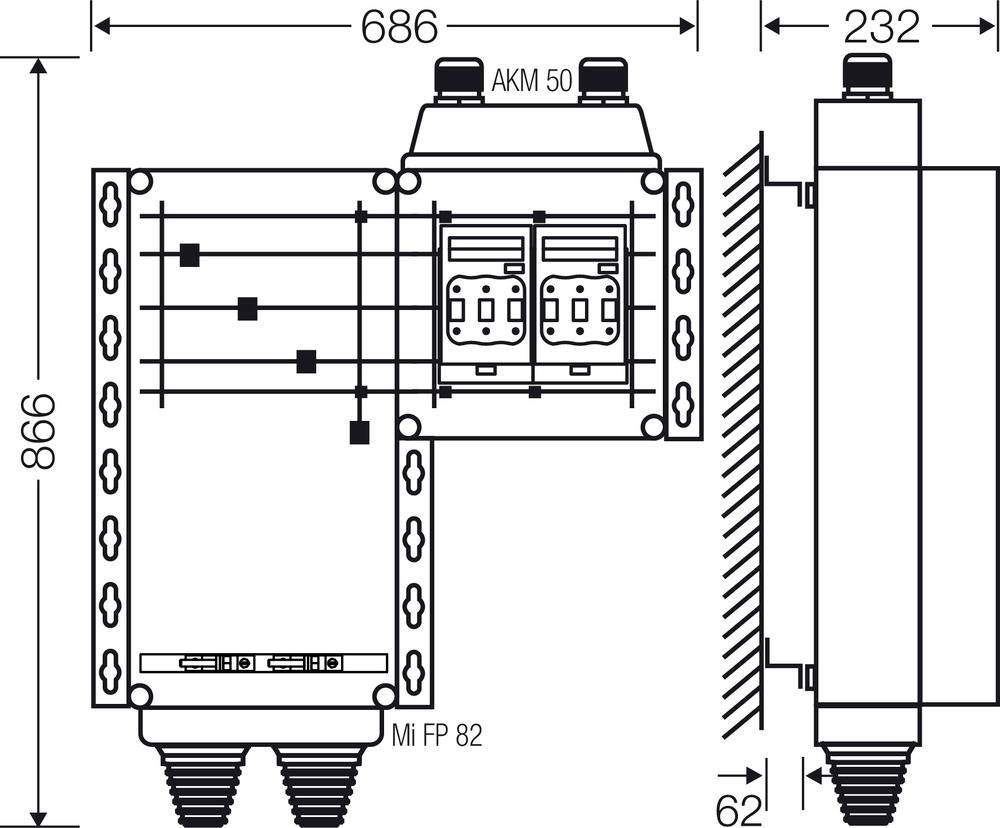

- Housing height 866 mm
- Protection class (IP) IP54
- Product type
Switchboard cabinet
- Mounting type
Wall
- Height
866 mm
- Content
1 pc(s)
IP54
- Number of pins
3
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3134999 Hensel 20001501 20001501 Switchboard cabinet Content 1 pc(s)
Description

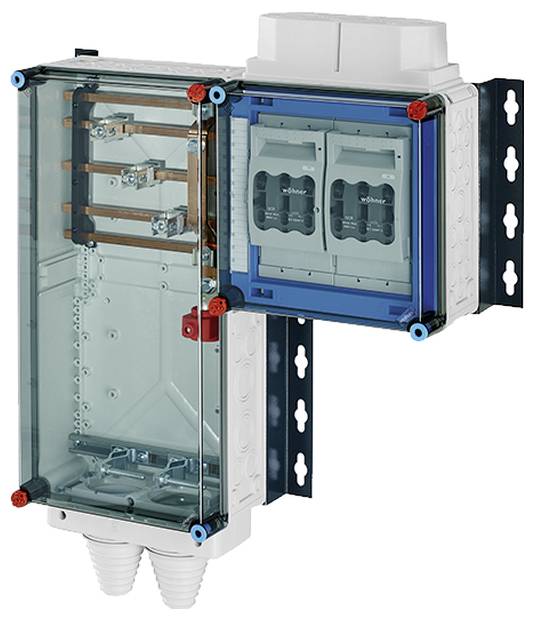

Housing for the building of energy-switching device combinations up to 630 A, or as individual housing. Made of high-quality polycarbonate with protective insulation. Wall penetrations with large openings for the electrical connection of the casings with each other. Cable entry at all housing walls by metric knockouts or extension flanges. Case for wall mounting even on external lugs or with mounting rails. Ready to connect distributor with 2 fuse switch disconnectors NH 00, 3-pin, on 5-pin busbar system 250 A.
