Hensel 20001511 20001511 Switchboard cabinet Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Wall
Width
386.00 mm
Height
507.00 mm
Depth
232.00 mm
Technical specifications
- NH fuse
- Rated current 125 A
- Protection class (IP) IP65
- Placing on a track system: Universal
- Number of groups: 2
- Housing material: Plastic
- With transparent cover: Yes
- Height: 507 mm
- Width 386 mm
- Depth: 232 mm
- Mounting option: Yes
- Product type
Switchboard cabinet
- Mounting type
Wall
- Width
386.00 mm
- Height
507.00 mm
- Dim

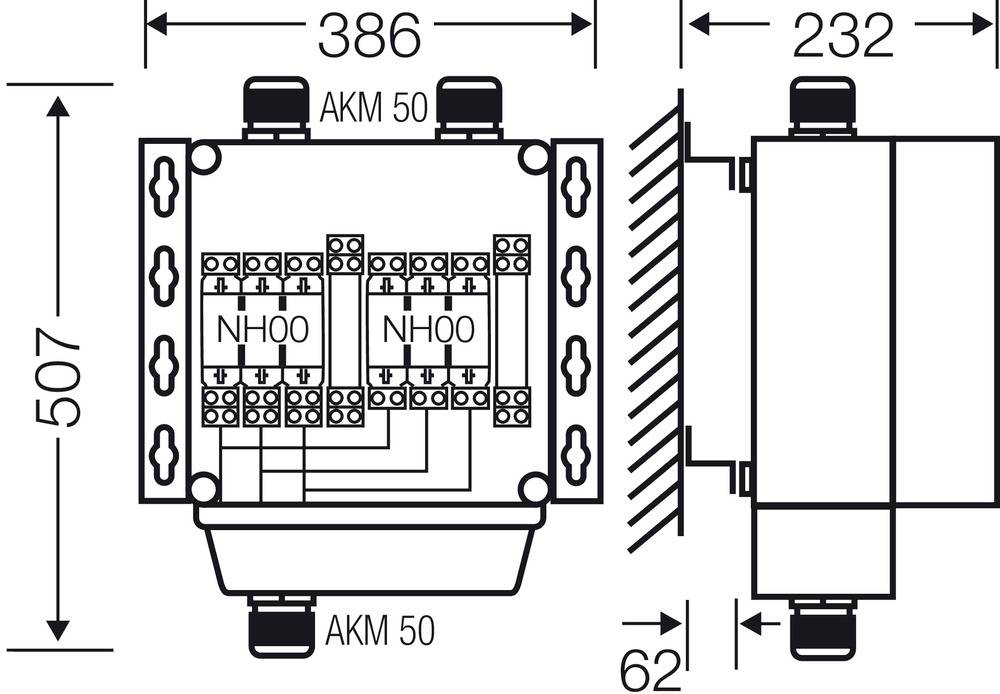

(W x H x D) 386.00 x 507.00 x 232.00 mm
- Depth
232.00 mm
- Content
1 pc(s)
IP65
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162262 Hensel 20001511 20001511 Switchboard cabinet Content 1 pc(s)
Description

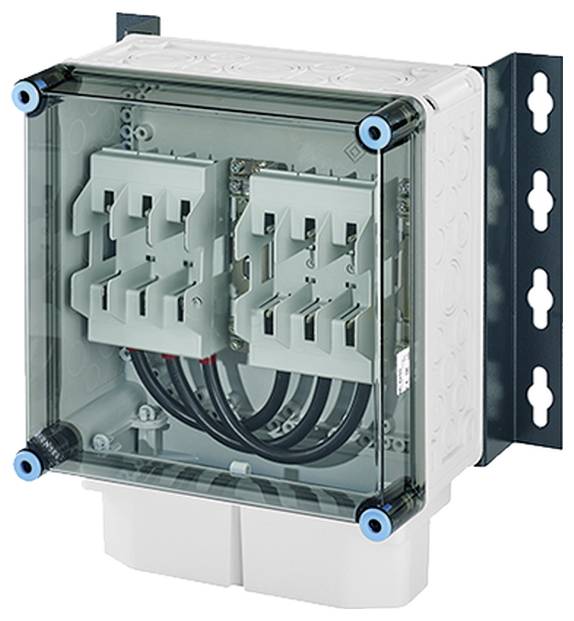

Housing for the building of energy-switching device combinations up to 630 A, or as individual housing. Made of high-quality polycarbonate with protective insulation. Wall penetrations with large openings for the electrical connection of the casings with each other. Cable entry at all housing walls by metric knockouts or extension flanges. Case for wall mounting even on external lugs or with mounting rails. Ready to connect distributor with 2 fuse sections NH 00, 3-pin.
