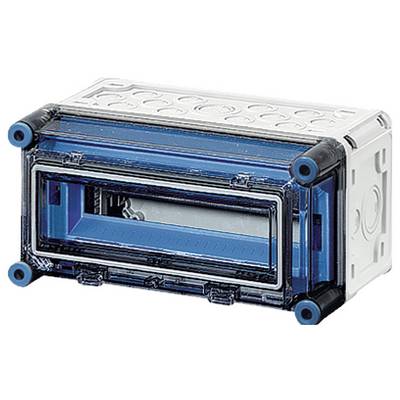

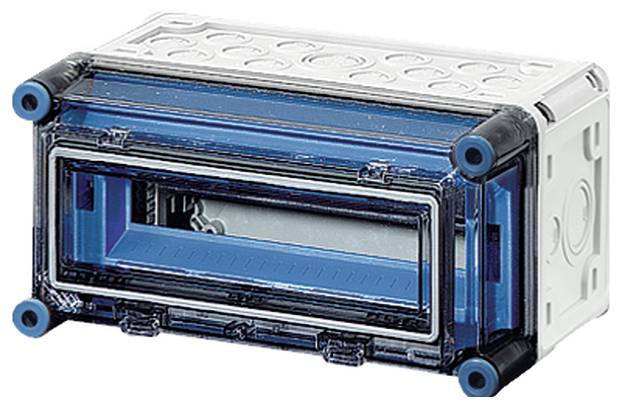

Hensel 2000615 Mi 1117 Distribution board Surface-mount No. of partitions = 12 No. of rows = 1 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
12
No. of rows
1
Mounting type
Surface-mount
Width
300 mm
Technical specifications
- Attachment option: Yes
- Type of cover: Cover
- Lid type: Closed
- Width in division units: 12
- DIN rail: Yes
- Installation depth: 93 mm
- EMC version: no.
- Internal depth 146 mm
- With mounting plate: no.
- With lock: no.
- Protection system: IP65
- Transparent cover/door: Yes
- Housing material: Plastic
- Product type
Distribution board
- No. of partitions
12
- No. of rows
1
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
300 mm
- Height
150 mm
- Dim

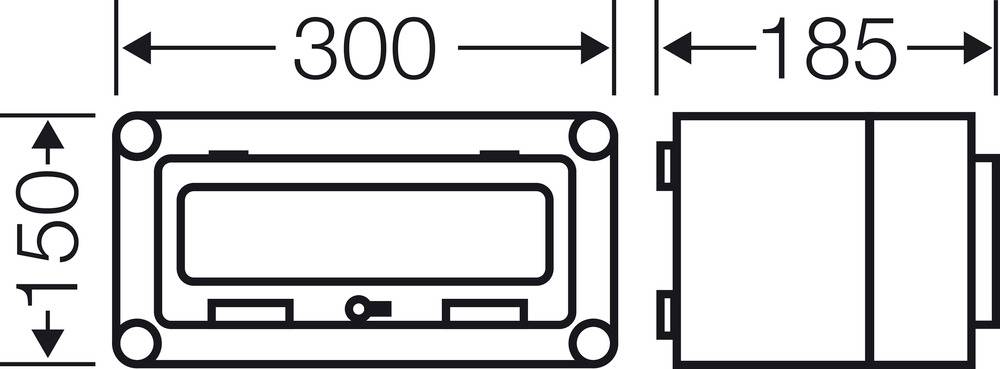

(W x H x D) 300 x 150 x 185 mm
- Depth
185 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292644 Hensel 2000615 Mi 1117 Distribution board Surface-mount No. of partitions = 12 No. of rows = 1 Content 1 pc(s)
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Circuit breaker housing with 12 division units for the installation of series installation devices according to DIN 43880. Without PE and N terminals. With cover strips for sealing unused device cutouts and labeling strips for circuit marking. Transparent hinged cover, lockable with accessories. Lid locks for manual operation.
