Hensel 6000038 Junction box (L x W x H) 49 x 88 x 88 mm Grey-white (RAL 7035) IP54 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
3 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€
Only 3 Piece(s) available
Highlights & Details

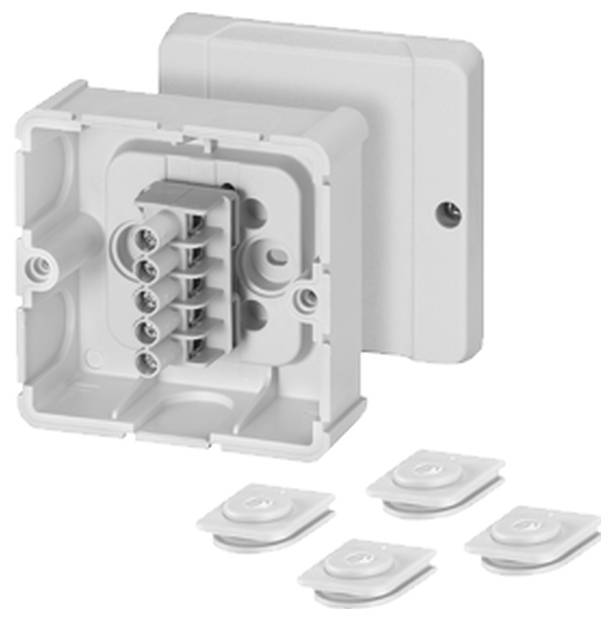

Hensel cable junction box DP 9025
- 1.5 - 2.5 mm², Cu3~
- With clamps
- 5-pin for each pin, 6 x 1.5 mm² sol, 4 x 2.5 mm² sol, 3 x 4 mm² sol
- For cable duct and tube installation
Technical specifications
- Product type
Junction box
- Factory colour
Grey-white (RAL 7035)
IP54
- Dim

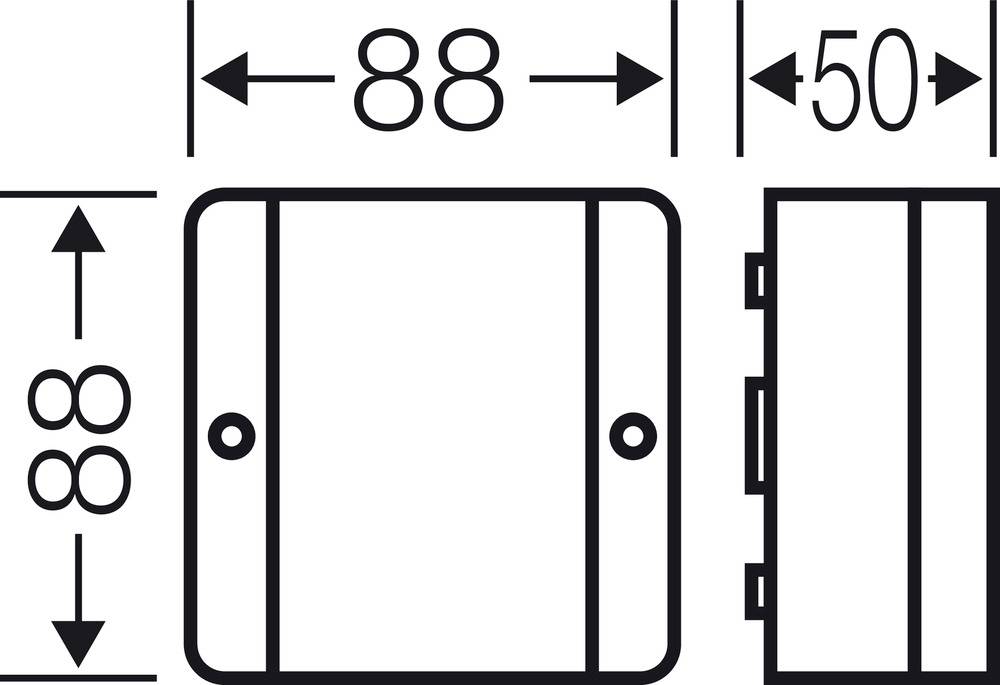

(L x W x H) 49 x 88 x 88 mm
- Content
1 pc(s)
- Material
PS
- Width
88 mm
- Height
88 mm
- Length
49 mm
Documents & Downloads
Datasheet
Datasheet 1826959 Hensel 6000038 Junction box (L x W x H) 49 x 88 x 88 mm Grey-white (RAL 7035) IP54 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1826959 Hensel 6000038 Junction box (L x W x H) 49 x 88 x 88 mm Grey-white (RAL 7035) IP54 1 pc(s)
Description
Cable junction box DP 9025
This text is machine translated.
This text is machine translated.
Features
- Attached Cable entry: 4 DPS 02,
- Sealing range 10-13.5 mm dia.
- For the protected installation
- Color: gray, RAL 7035
- Rated insulation voltage Ui=690 V a c/d.c.
