Hensel 61001100 KV PC 9103 Distribution board Surface-mount No. of partitions = 3 No. of rows = 1 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
3
No. of rows
1
Mounting type
Surface-mount
Width
102 mm
Technical specifications
- Attachment option: Yes
- Type of cover: Door
- Lid type: Closed
- Width in division units: 3
- DIN rail: Yes
- Installation depth: 72 mm
- EMC version: no.
- Internal depth 79 mm
- With mounting plate: no.
- With lock: no.
- Protection system: IP65
- Transparent cover/door: Yes
- Housing material: Plastic
- Product type
Distribution board
- No. of partitions
3
- No. of rows
1
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
102 mm
- Height
197 mm
- Dim

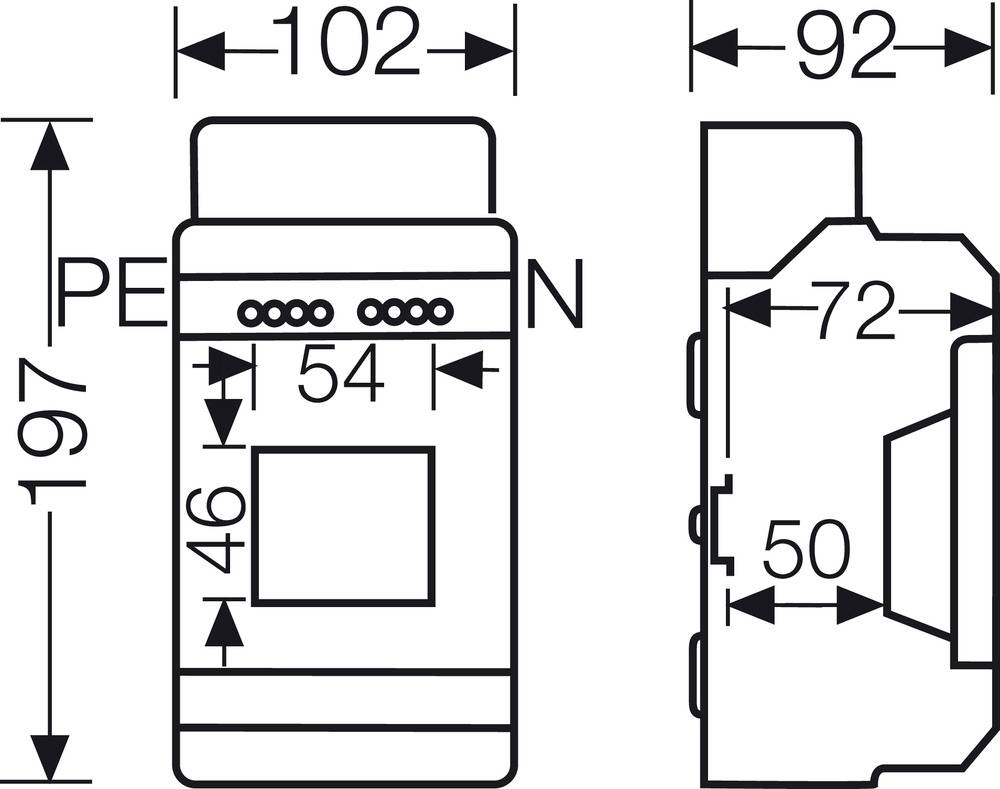

(W x H x D) 102 x 197 x 92 mm
- Depth
92 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295840 Hensel 61001100 KV PC 9103 Distribution board Surface-mount No. of partitions = 3 No. of rows = 1 Content 1 pc(s)
Description

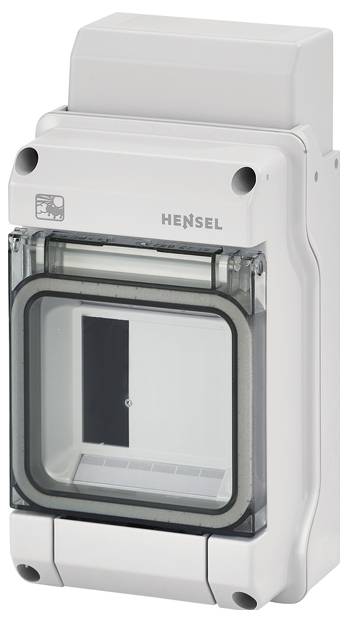

Small distributor made of high-quality thermoplastic (polycarbonate). For surface-mounted applications for unprotected installation outdoors or in buildings. Automatic casing, with 3 division units, for the installation of devices with snap-on fixing on DIN-mounting rail. Cable entry takes place via metric knockouts. With transparent flap, cable entry panel and break-out device cut-out. Protection type IP 65.
