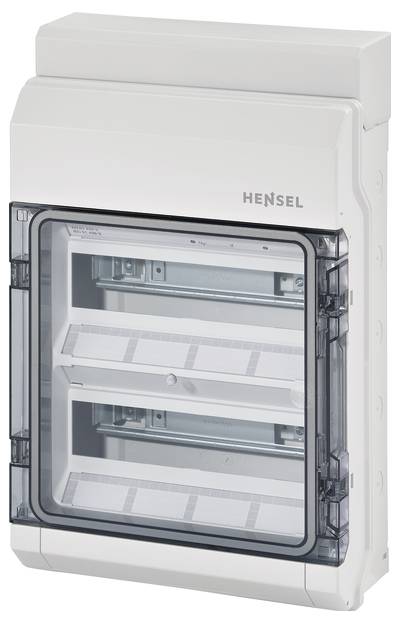

Hensel 6100226 KV 2524 Switchboard cabinet No. of partitions = 24 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
24
No. of rows
2
Mounting type
35mm section rail mount
Width
295 mm
Datasheet (PDF)
Highlights & Details
Hensel KV 2524
- 24 division units: 2 x 12 x 18 mm
- 2-rows
- N separated, up to 4 different potentials
Technical specifications
- Product type
Switchboard cabinet
- No. of partitions
24
- with PE and N terminals
Yes
- No. of rows
2
- Mounting type
35mm section rail mount
- Factory colour
Grey-white (RAL 7035)
- Width
295 mm
- Height
458 mm

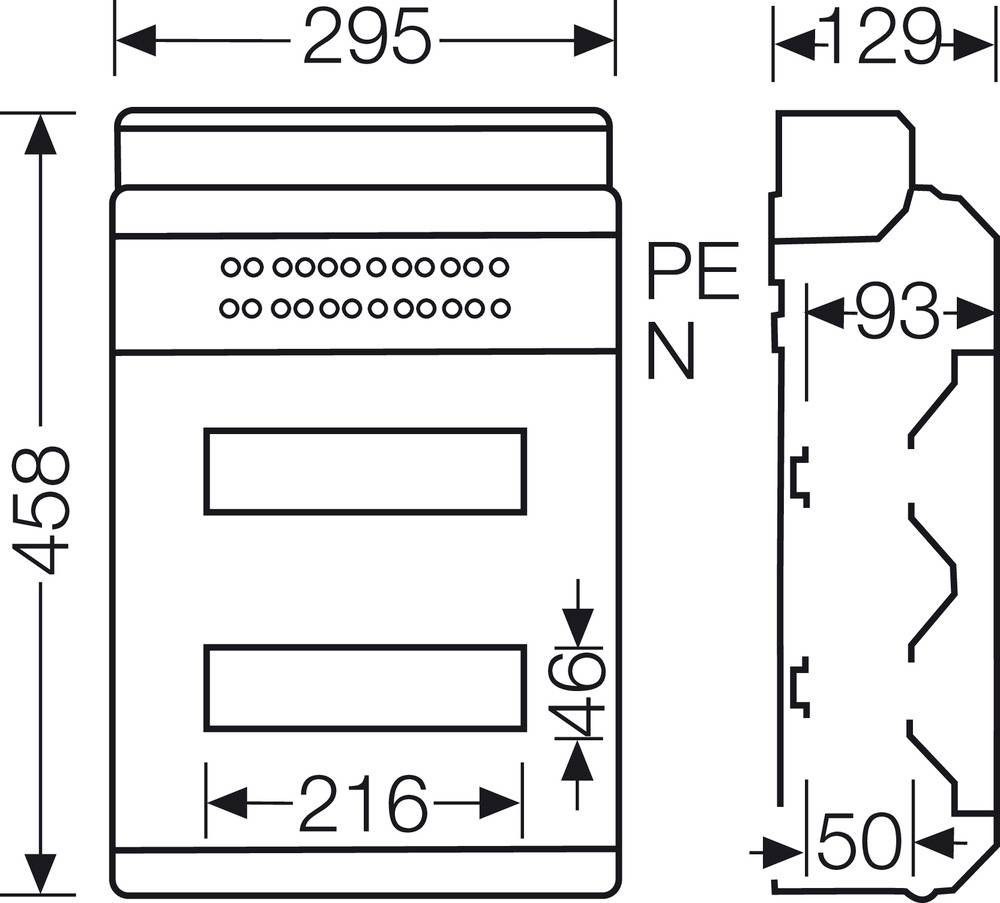

- Dim
(W x H x D) 295 x 458 x 129 mm
- Depth
129 mm
- Content
1 pc(s)
- Weight
2.63
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1826957 Hensel 6100226 KV 2524 Switchboard cabinet No. of partitions = 24 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1826957 Hensel 6100226 KV 2524 Switchboard cabinet No. of partitions = 24 Content 1 pc(s)
Description
Hensel KV 2524
This text is machine translated.
This text is machine translated.
Features
- The PE/N number x cross-section 6 x 25 mm², 24 x 4 mm² Cu, FIXCONNECT® plug-in terminal technology, technique
- N separated, up to 4 different potentials
- For the installation of devices with snap-on mounting on DIN rail, top hat 35 mm
- With a transparent door
- Lock for the door and plombierset see accessories
- With cable entry panel
- With Cover strips for the device cut-out
- With integrated, elastic sealing membranes for cable entry
- Protection class IP 54
- Color: gray, RAL 7035
- Rated insulation voltage Ui = 400V a.c.
- Power output capacity Pde = 31 W at 30K according to EN 60670-24
- Allowed Power Loss Pzul = 25 W at 30 K to DIN 43871
