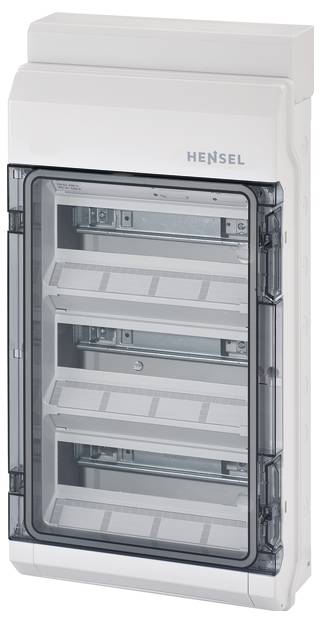

Hensel 6100228 KV 3536 Switchboard cabinet No. of partitions = 36 No. of rows = 3 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
36
No. of rows
3
Width
583 mm
Height
295 mm
Datasheet (PDF)
Highlights & Details
Hensel KV3536
- 36 division units: 3 x 12 x 18 mm
Technical specifications
- Product type
Switchboard cabinet
- No. of partitions
36
- No. of rows
3
- Factory colour
Grey-white (RAL 7035)
- Width
583 mm
- Height
295 mm
- Dim

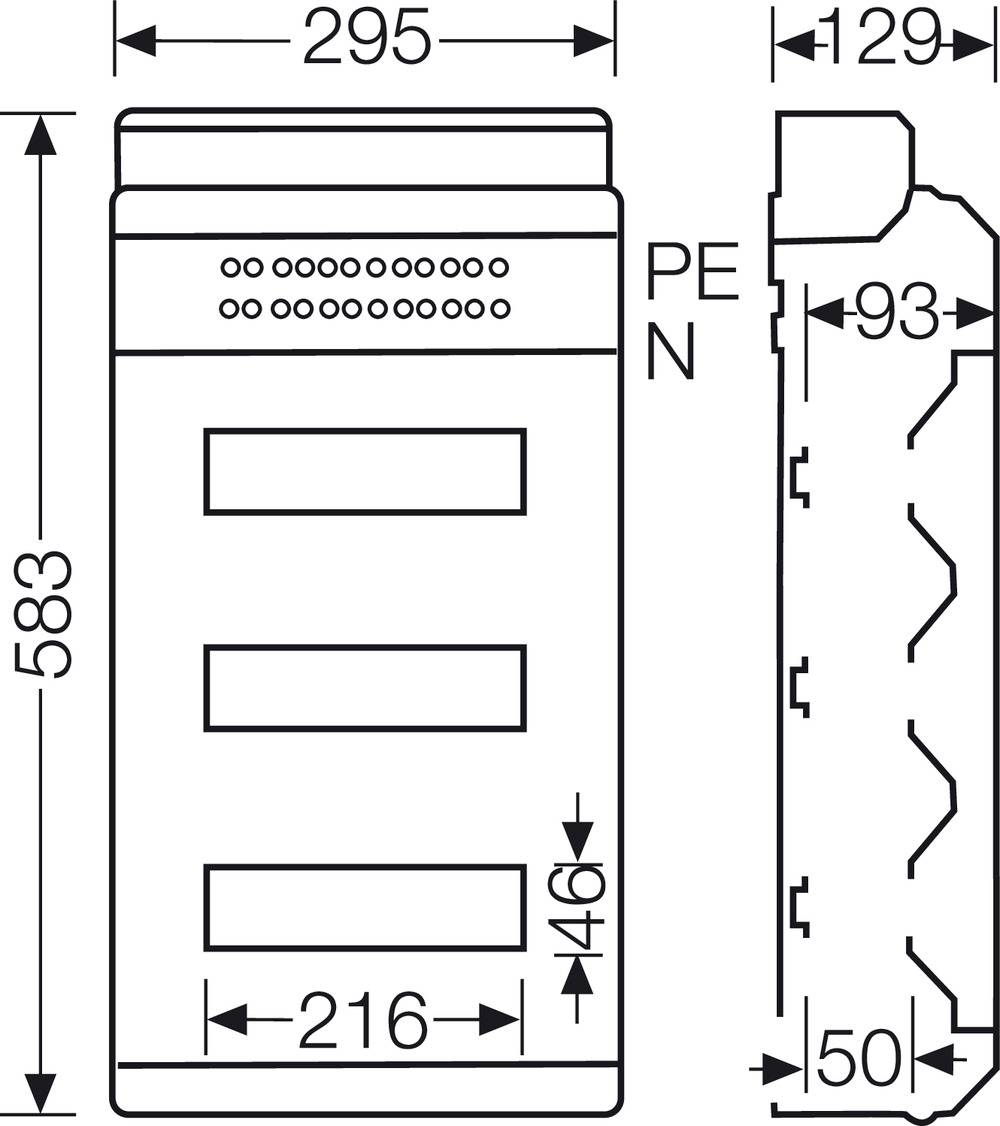

(W x H x D) 583 x 295 x 129 mm
- Depth
129 mm
- Content
1 pc(s)
- Weight
3.36
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1826900 Hensel 6100228 KV 3536 Switchboard cabinet No. of partitions = 36 No. of rows = 3 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1826900 Hensel 6100228 KV 3536 Switchboard cabinet No. of partitions = 36 No. of rows = 3 Content 1 pc(s)
Description
Hensel KV3536
This text is machine translated.
This text is machine translated.
Features
- 3-rows
- The PE/N number x cross-section 6 x 25 mm², 24 x 4 mm² Cu, FIXCONNECT® plug-in terminal technology, Technique See Technical Annex
- N separated, up to 4 different potentials
- For the installation of devices with snap-on mounting on DIN rail, top hat 35 mm
- With a transparent door
- Lock for the door and plombierset see accessories
- With cable entry panel
- With Cover strips for the device cut-out
- With integrated, elastic sealing membranes for cable entry
- Protection class IP 54
- Color: gray, RAL 7035
