Hensel 6100229 KV 4548 Switchboard cabinet No. of partitions = 48 No. of rows = 4 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
48
No. of rows
4
Width
295 mm
Height
708 mm
Datasheet (PDF)
Highlights & Details

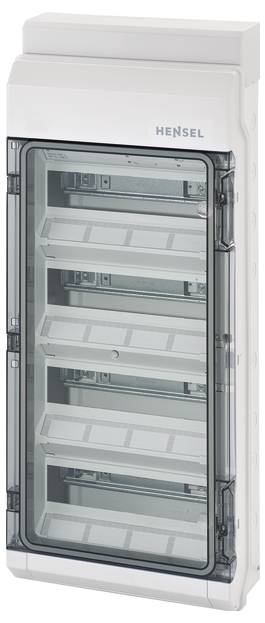

Hensel Machinehousing KV 4548
- 48 division units: 4 x 12 x 18 mm
- 4-row
- N separated, up to 4 different potentials
Technical specifications
- Product type
Switchboard cabinet
- No. of partitions
48
- No. of rows
4
- Factory colour
Grey-white (RAL 7035)
- Width
295 mm
- Height
708 mm
- Dim

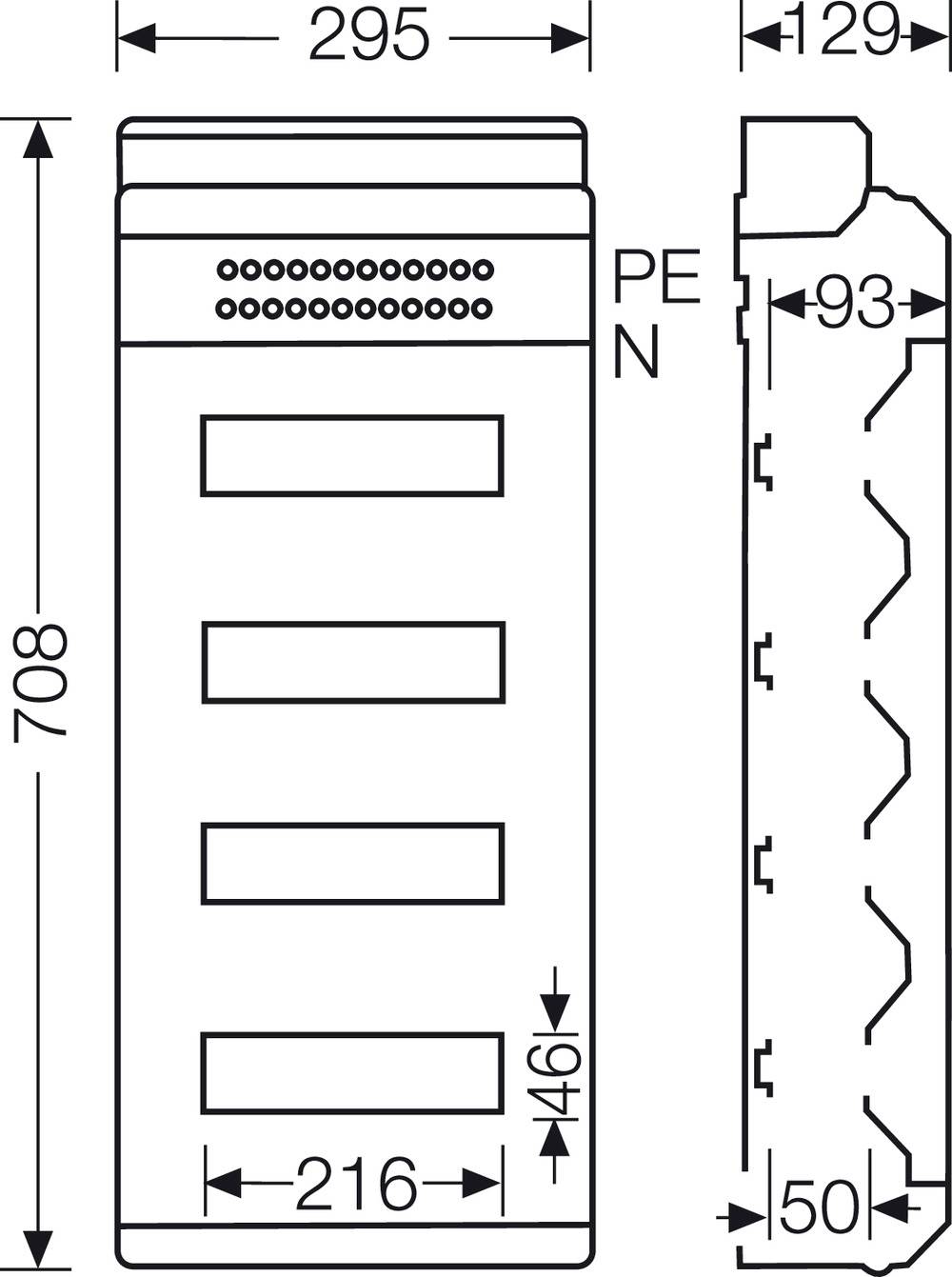

(W x H x D) 295 x 708 x 129 mm
- Depth
129 mm
- Content
1 pc(s)
- Weight
4.03
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1826958 Hensel 6100229 KV 4548 Switchboard cabinet No. of partitions = 48 No. of rows = 4 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1826958 Hensel 6100229 KV 4548 Switchboard cabinet No. of partitions = 48 No. of rows = 4 Content 1 pc(s)
Description
Machine casing KV 4548
This text is machine translated.
This text is machine translated.
Features
- The PE/N number x cross-section 6 x 25 mm², 24 x 4 mm² Cu, FIXCONNECT® plug-in terminal technology, technique, see
- Technical annex
- N separated, up to 4 different potentials
- For the installation of devices with snap-on mounting on DIN rail, top hat 35 mm
- With a transparent door
- Lock for the door and plombierset see accessories
- With cable entry panel
- With Cover strips for the device cut-out
- With integrated, elastic sealing membranes for cable entry
- Protection class IP 54
- Color: gray, RAL 7035
- Rated insulation voltage Ui = 400V a.c.
- Power output capacity Pde = 43 W at 30K according to EN 60670-24
- Allowed Power Loss Pzul = 34 W at 30 K to DIN 43871
