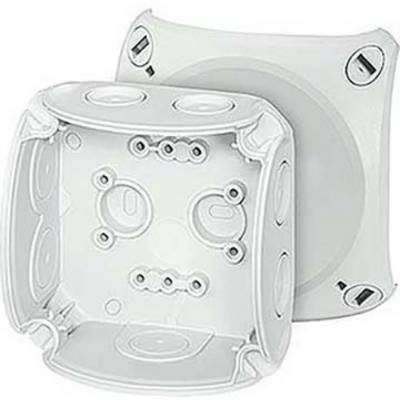

Hensel 62000000 Junction box Halogen-free, Sealable (L x W) 93 mm x 93 mm 1 pc(s)
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 8
- Assembly: None
- Lid mounting: Screwed
- Introduction from behind: Yes
- Operating temperature: -25..40 °C.
- Shape: Square
- Surface: Untreated
- IP66 protection rating
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 93 mm x 93 mm
- Length
93 mm
- Width
93 mm
- Depth
62 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292208 Hensel 62000000 Junction box Halogen-free, Sealable (L x W) 93 mm x 93 mm 1 pc(s)
Description
Cable junction box made of high-quality thermoplastic. For surface-mounting applications in buildings or protected installation outdoors. With external straps for fixing and lid fixing via quick-release fasteners. Cable junction box without terminals. Cable entry via elastic sealing membranes in housing walls and floor. Subsequent use of cable supports by removing the sealing membrane. With cover strap.
