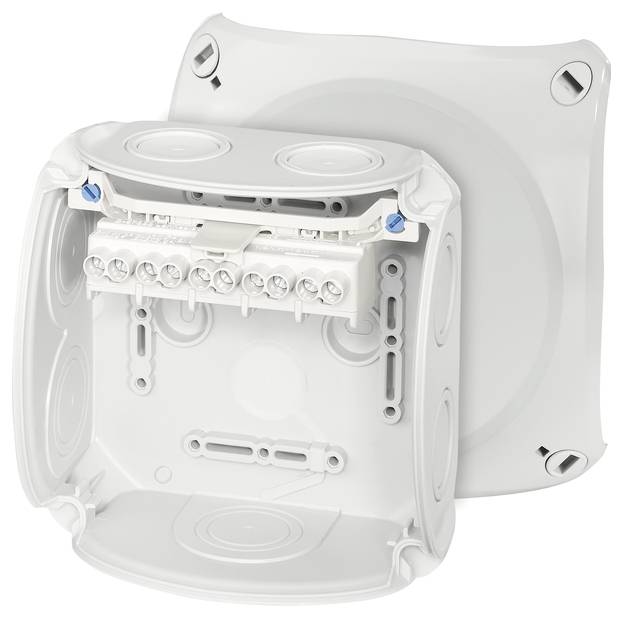

Hensel 62000007 Junction box (L x W x H) 77 x 130 x 130 mm Grey-white (RAL 7035) IP66 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 0.98
€ 24.22
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
14-day return policy included
Highlights & Details
Hensel DK 0606 G
- 2.5 mm², Cu3~
- Cable entry in the ground, sealing range Ø 9,0-20,0 mm
- Lid without accessories sealable
Technical specifications
- Product type
Junction box
- Factory colour
Grey-white (RAL 7035)
IP66
- Dim
(L x W x H) 77 x 130 x 130 mm
- Content
1 pc(s)
- Material
PP
- Width
130 mm
- Height
130 mm
- Length
77 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1826972 Hensel 62000007 Junction box (L x W x H) 77 x 130 x 130 mm Grey-white (RAL 7035) IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1826972 Hensel 62000007 Junction box (L x W x H) 77 x 130 x 130 mm Grey-white (RAL 7035) IP66 1 pc(s)
Description
Suitable for interior rooms and the protected installation outdoors according to DIN VDE 0100 Part 737
This text is machine translated.
This text is machine translated.
Features
- Terminal with 2 clamping points per pin
- 5-pin for each pin, 6 x 1.5 mm² sol/f, 4 x 2.5 mm² sol/F, 4x 4 mm² sol/F, 4x 6 mm² sol/f, 2 x 10 mm² sol/F
- With elastic sealing membranes, residue for cable entry, sealing range Ø 9,0-21,0 mm
- With a cable entry in the ground, sealing range Ø 9,0-20,0 mm
- Lid without accessories sealable
- Cover holding band and outdoor brackets for wall mounting included
- Color: gray, RAL 7035
- To close the open membranes plug-in cable supports type EDK. Protection class = IP66.
- Rated insulation voltage Ui=690 V a c/d.c.
- Rated current 40 A
- Material: PP (polypropylene)
- Protection class IP66
