Hensel 62000043 Junction box (L x W x H) 62 x 93 x 93 mm Grey-white (RAL 7035) IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Highlights & Details

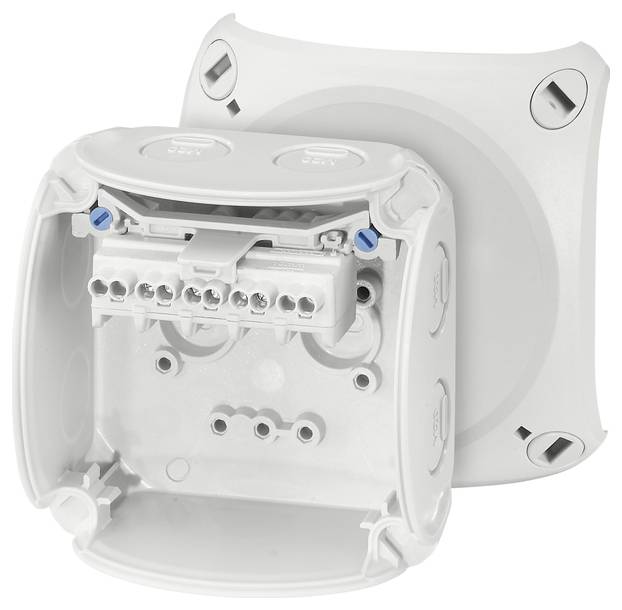

Hensel KF 0202 G polycarbonate electrical junction box
- 0.75-2.5 mm ², Cu 3 ~
- Corrosion-resistant
- "Offshore Applications"
- Lid without accessories sealable
Technical specifications
- Product type
Junction box
- Factory colour
Grey-white (RAL 7035)
IP66
IP67
IP69
- Dim

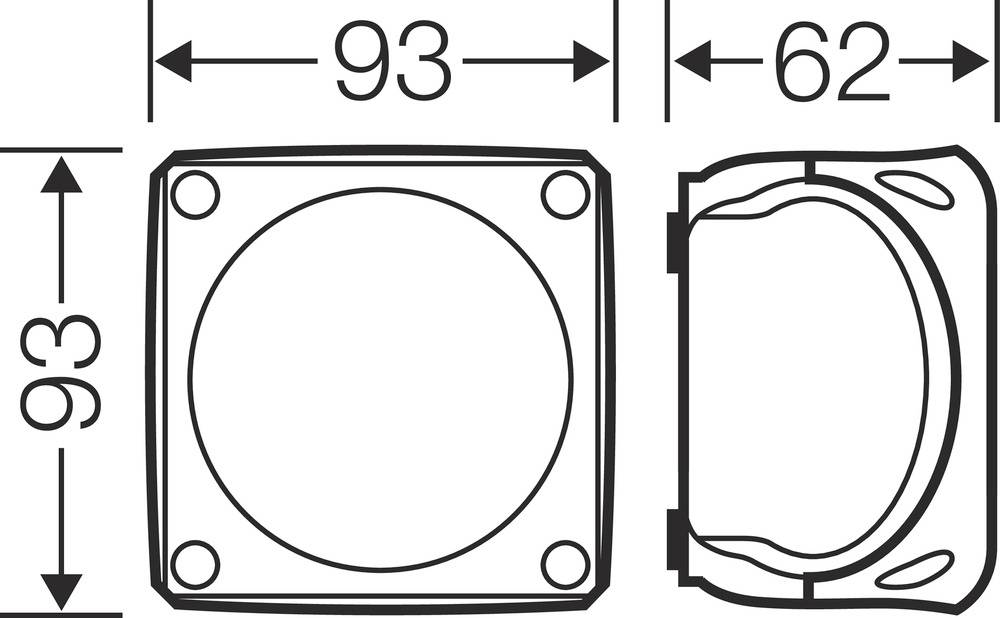

(L x W x H) 62 x 93 x 93 mm
- Content
1 pc(s)
- Material
PC
- Width
93 mm
- Height
93 mm
- Length
62 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1826930 Hensel 62000043 Junction box (L x W x H) 62 x 93 x 93 mm Grey-white (RAL 7035) IP66, IP67, IP69 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1826930 Hensel 62000043 Junction box (L x W x H) 62 x 93 x 93 mm Grey-white (RAL 7035) IP66, IP67, IP69 1 pc(s)
Description
Hensel KF 0202 g. Product Color: gray. Width: 93 mm, Depth: 62 mm, Height: 93 mm
This text is machine translated.
This text is machine translated.
Features
- Terminal with 2 clamping points per pin
- 5-pin for each pin, 8 x 0.75 mm² f, 6 x 1.5 mm² sol/f, 4 x 2.5 mm² sol/F, 2x 4 mm² sol/F
- Cable entries via imprints, AKM order separately (see cable entry systems LES)
- "Weatherproof "resistant to weather influences (UV-exposure to sunlight, protection against rain water,
- Temperature-resistant, impact-resistant, etc.)
- Corrosion-resistant
- "Offshore Applications"
- Lid without accessories sealable
- Cover holding band and outdoor brackets for wall mounting included
- Color: gray, RAL 7035
- Rated insulation voltage Ui=690 V a c/d.c.
- Rated current 20 A
- Material: PC (polycarbonate) with GFS
- Protection class IP66/IP67/IP69
- IP67, temporary submersion under water up to 1 meters, maximum 15 minutes
- IP69, water pressure up to 100 bar, Water temperature max. 80 °C
- Distance ≥ 0.15 m
- Terminal tightening torque: 0.5 Nm
