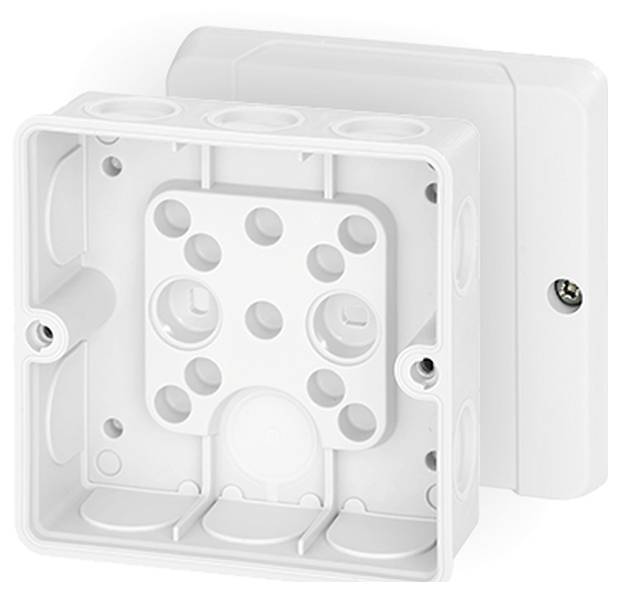

Hensel 62000271 Junction box Halogen-free, Sealable (L x W) 98 mm x 98 mm 5 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 10
- Type of housing bushing: Sealing membrane
- Assembly: None
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..40 °C.
- Shape: Square
- Max. Conductor cross-section: 4 mm²
- Surface: Untreated
- Protection class IP55
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
5 pc(s)
- Factory colour
White

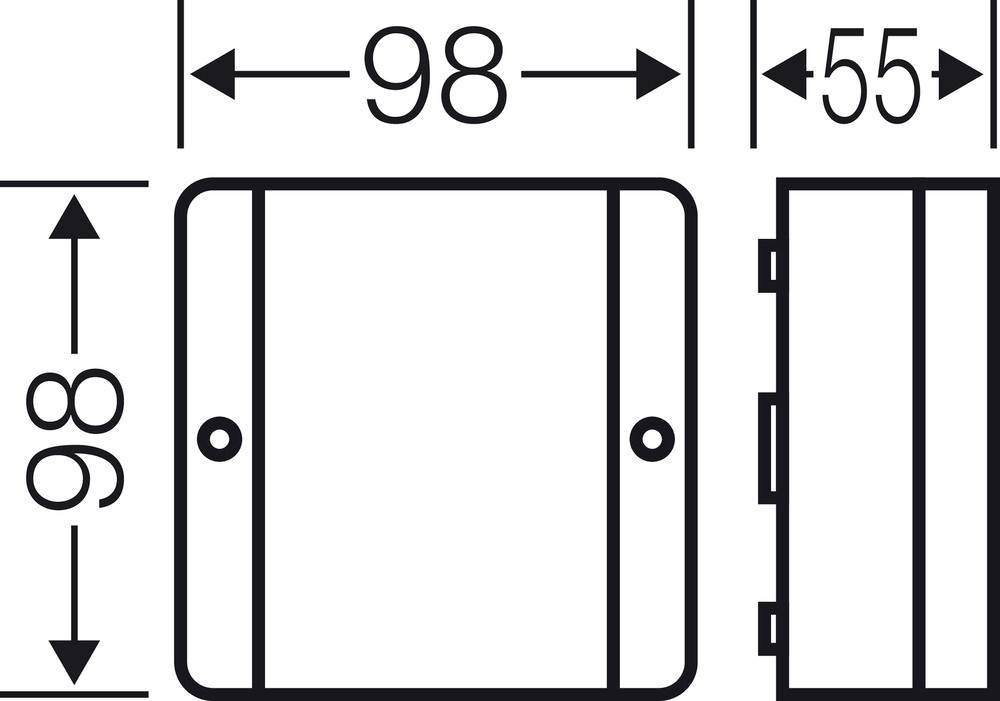

- Dim
(L x W) 98 mm x 98 mm
- Length
98 mm
- Width
98 mm
- Depth
52 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296837 Hensel 62000271 Junction box Halogen-free, Sealable (L x W) 98 mm x 98 mm 5 pc(s)
Description
Cable junction boxes made of high-quality thermoplastic for surface-mounted applications in buildings or protected installation outdoors. Cable entry via elastic sealing membranes, simply push through the conductor, no hole tool required. Cover attachment with V2A screws. Without clamps.
