Hensel 68000031 Fuse holder 160 A
EAN:
Part number:
Item no:
Product type
Fuse holder
Nominal current - rounded value
160 A
Number of pins
3
Nominal current
160 A
Dim

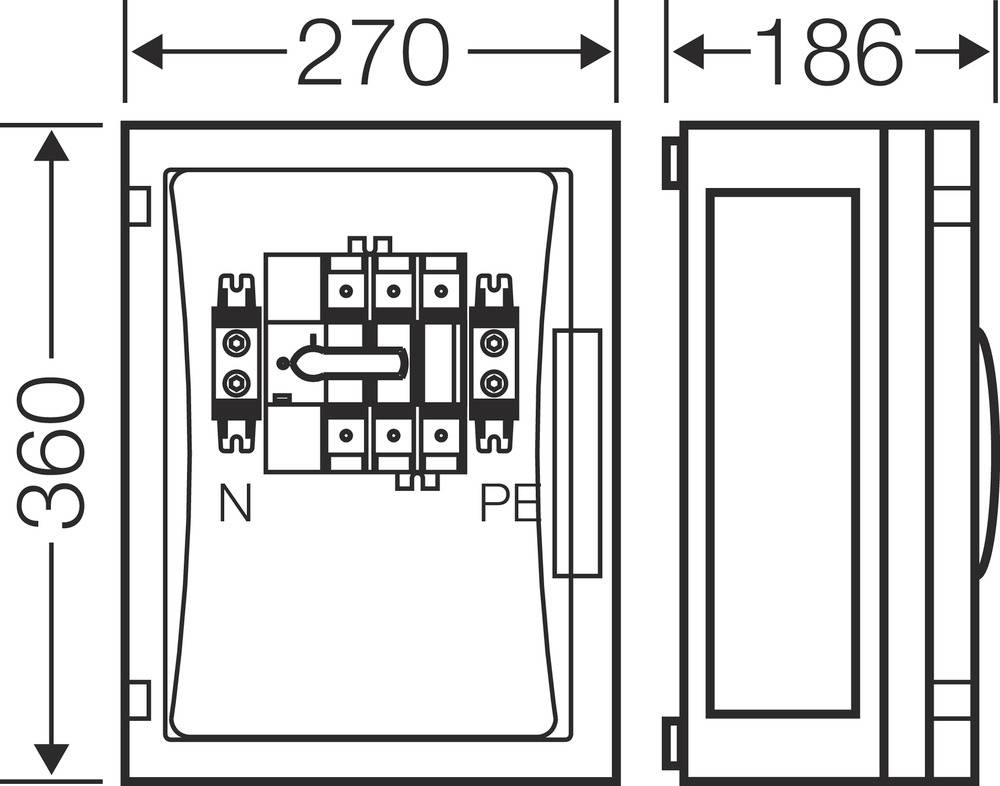

(W x H x D) 270 x 360 x 186 mm
Technical specifications
- Fuse switch disconnector housing equipment: With switch disconnector
- Rated insulation voltage 690 V.
- Protection system: IP65
- Product type
Fuse holder
- Nominal current
160 A
- Nominal current - rounded value
160 A
- Number of pins
3
- Dim
(W x H x D) 270 x 360 x 186 mm
- Model
3-phase
- Content
1 pc(s)
- Width
270 mm
- Height
360 mm
- Depth
186 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297107 Hensel 68000031 Fuse holder 160 A
Description

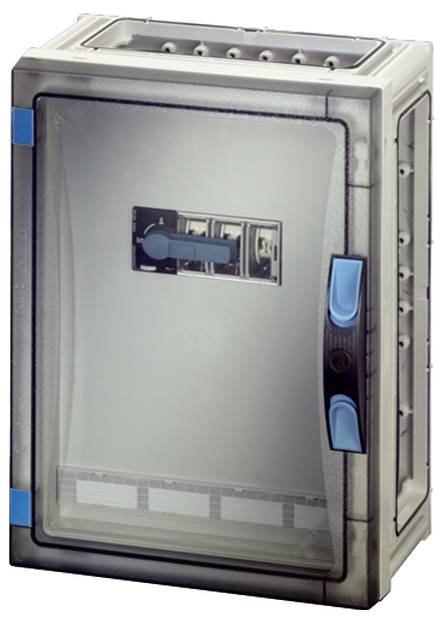

Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Housing with 160 A switch disconnector, 3-pole, according to IEC 60947-3. With PE and N terminals. Connection space can be changed. With transparent door and sealable door lock with manual actuation. Lockable switch drive.
