Hensel 68000032 Fuse holder 250 A
EAN:
Part number:
Item no:
Product type
Fuse holder
Nominal current - rounded value
250 A
Number of pins
3
Nominal current
250 A

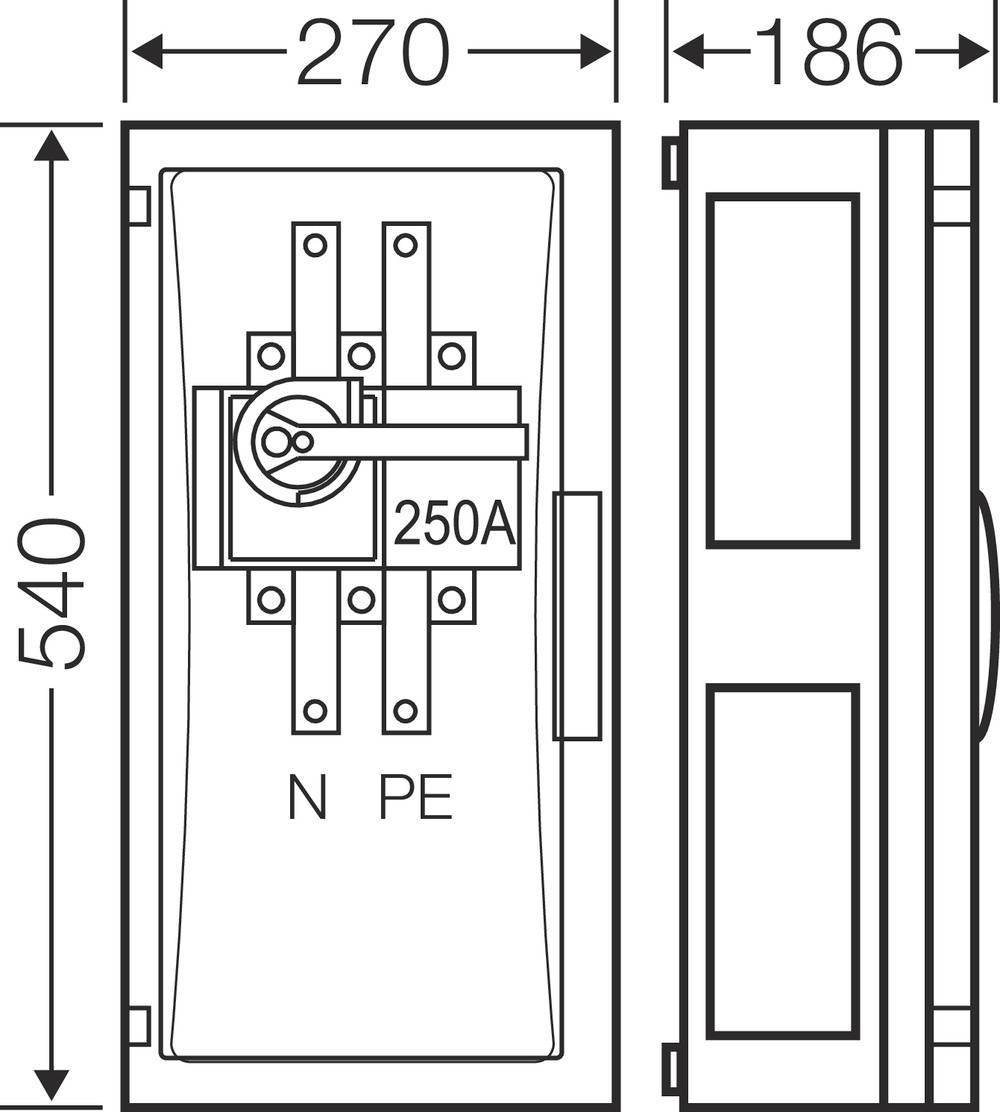

Dim
(W x H x D) 270 x 540 x 186 mm
Technical specifications
- Fuse switch disconnector housing equipment: With switch disconnector
- Rated insulation voltage 690 V.
- Protection system: IP65
- Product type
Fuse holder
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Number of pins
3
- Dim
(W x H x D) 270 x 540 x 186 mm
- Model
3-phase
- Content
1 pc(s)
- Width
270 mm
- Height
540 mm
- Depth
186 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297598 Hensel 68000032 Fuse holder 250 A
Description

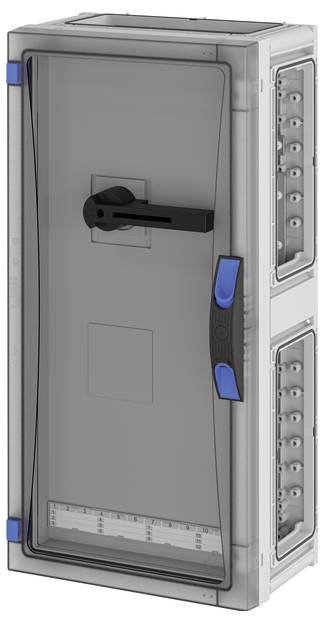

Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Housing with 250 A switch disconnector, 3-pole, according to IEC 60947-3. With PE and N terminals. Connection space can be changed. With transparent door and sealable door lock with manual actuation. Lockable switch drive.
