Hensel 68000219 Fuse holder Fuse size = 1 3-pin 250 A 800 V
EAN:
Part number:
Item no:
Product type
Fuse holder
Fuse size
1
Nominal current - rounded value
250 A
Number of pins
3
Nominal voltage
800 V
Technical specifications
- Fuse switch disconnector housing equipment: With fuse switch disconnector
- Rated insulation voltage 690 V.
- IP66 protection rating
- Product type
Fuse holder
- Fuse size
1
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Number of pins
3
- Nominal voltage
800 V
- Dim

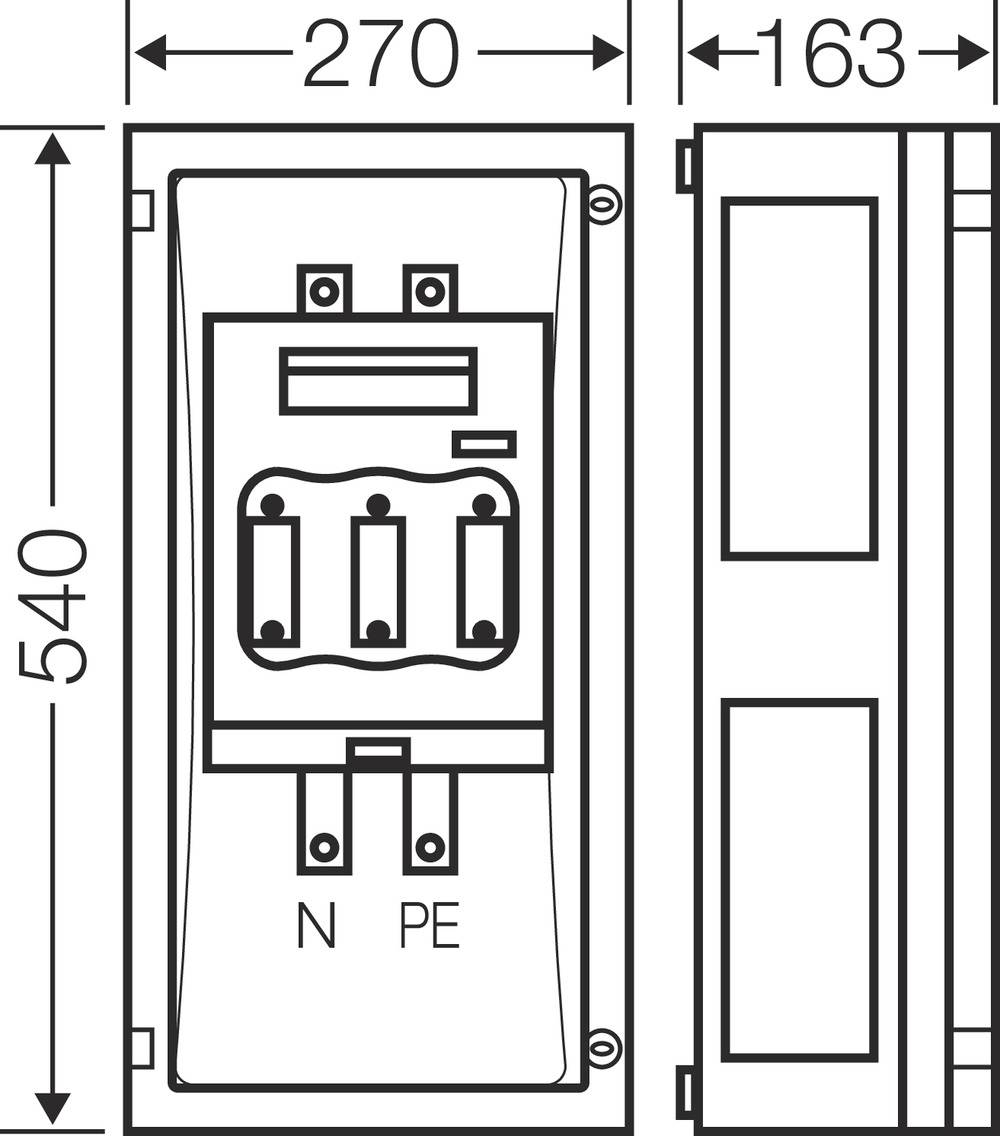

(W x H x D) 270 x 540 x 163 mm
- Model
3-phase
- Content
1 pc(s)
- Suitable for
Fuse size 000 - 4
- Width
270 mm
- Height
540 mm
- Depth
163 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296587 Hensel 68000219 Fuse holder Fuse size = 1 3-pin 250 A 800 V
Description

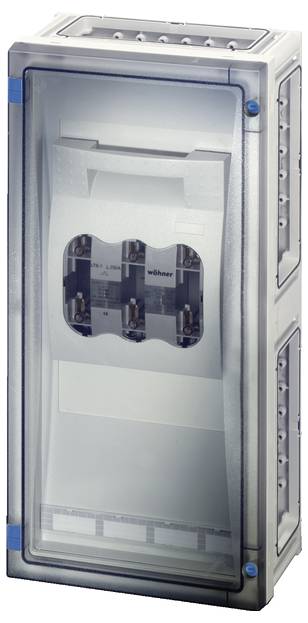

Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Housing with NH 1 fuse switch disconnector, 3-pole, according to IEC 60947-3 on mounting plate. With supply terminals, PE and N terminals. With bridge for splitting the supply line. Connection space can be changed. With transparent door and door lock with tool actuation.
