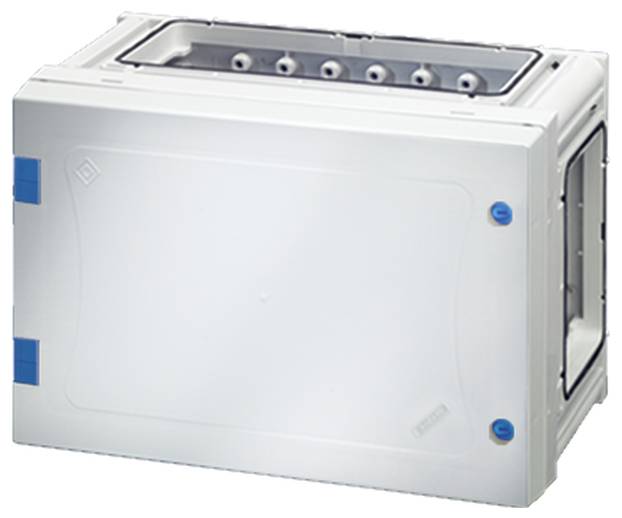

Hensel FP 0120 68000201 Casing 270 x 180 x 163 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Casing
Material
Plastic
IP rating
IP66
Width
270 mm
Height
180 mm
Highlights & Details
Hensel empty housing EB-Mass216x126x136mm FP 0120
Our service for you
Technical specifications
- Attachment option: Yes
- Number of modules: 1
- Number of holes for flange plates: 4
- Number of rows: 1
- Type of cover: Door
- Type of door: Single
- Lid type: Closed
- Installation depth: 136 mm
- Suitable for outdoor use: Yes
- Suitable for lightning protection: no.
- Material thickness housing: 3 mm
- Material thickness door/lid: 3 mm
- Mounting type: Surface-mounted
- Protection class: II
- Product type
Casing
- Material
Plastic
IP66
- Type
Housing
- Width
270 mm
- Height
180 mm
- Internal depth
136 mm
- Content
1 pc(s)
- Dim

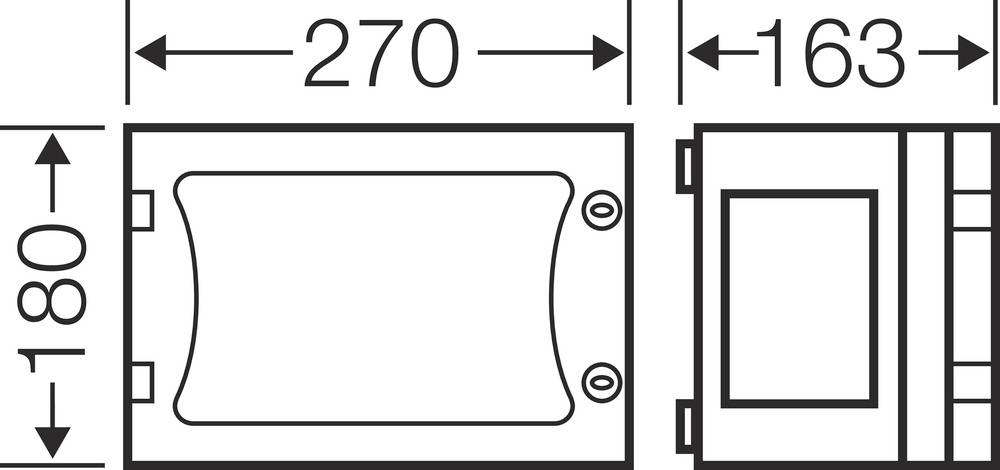

(W x H x D) 270 x 180 x 163 mm
- RoHS-compliant
Yes
- Weight
1.41
- Depth
163 mm
- Type
FP 0120
Surface mounted (plaster)
II
270
180 mm
163 mm
7035
FALSE
Untreated
136 mm
1
Door
0
Plastic
IK08
IP65
FALSE
Closed
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296586 Hensel FP 0120 68000201 Casing 270 x 180 x 163 Plastic 1 pc(s)
Description
Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Empty housing with non-transparent door and door lock with tool actuation. For the installation of devices on mounting plate or DIN mounting rail, installation dimensions W 216 x H 126 x D 140 mm. Max. Mounting depth with built-in mounting plate 136 mm, with built-in mounting rail 125 mm. The sealing device for the door seal must be ordered separately.
