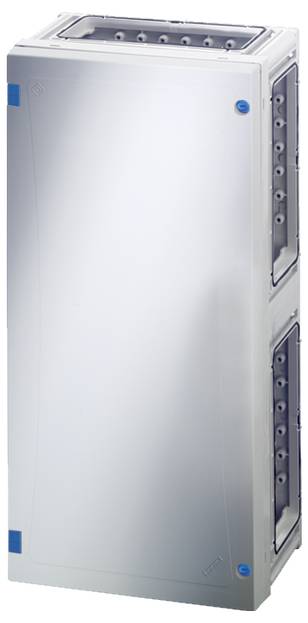

Hensel FP 0330 Casing 270 x 540 x 163 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Casing
Material
Plastic
IP rating
IP66
Width
270 mm
Technical specifications
- Attachment option: Yes
- Number of modules: 1
- Number of holes for flange plates: 6
- Number of rows: 1
- Door version: Single door, closed
- Installation depth: 136 mm
- Suitable for outdoor use: Yes
- Suitable for lightning protection: no.
- Internal depth 136 mm
- Material thickness housing: 3 mm
- Material thickness door/lid: 3 mm
- Mounting type: Surface-mounted
- Impact strength: IK08
- Protection class: II
- Transparent cover/door: no.
- Packaging type
Piece
- Product type
Casing
- Features
with door
shockproof
- Material
Plastic
IP66
- Type
Housing
- Length
540 mm
- Width
270 mm
- Height
540 mm
- Dimensions

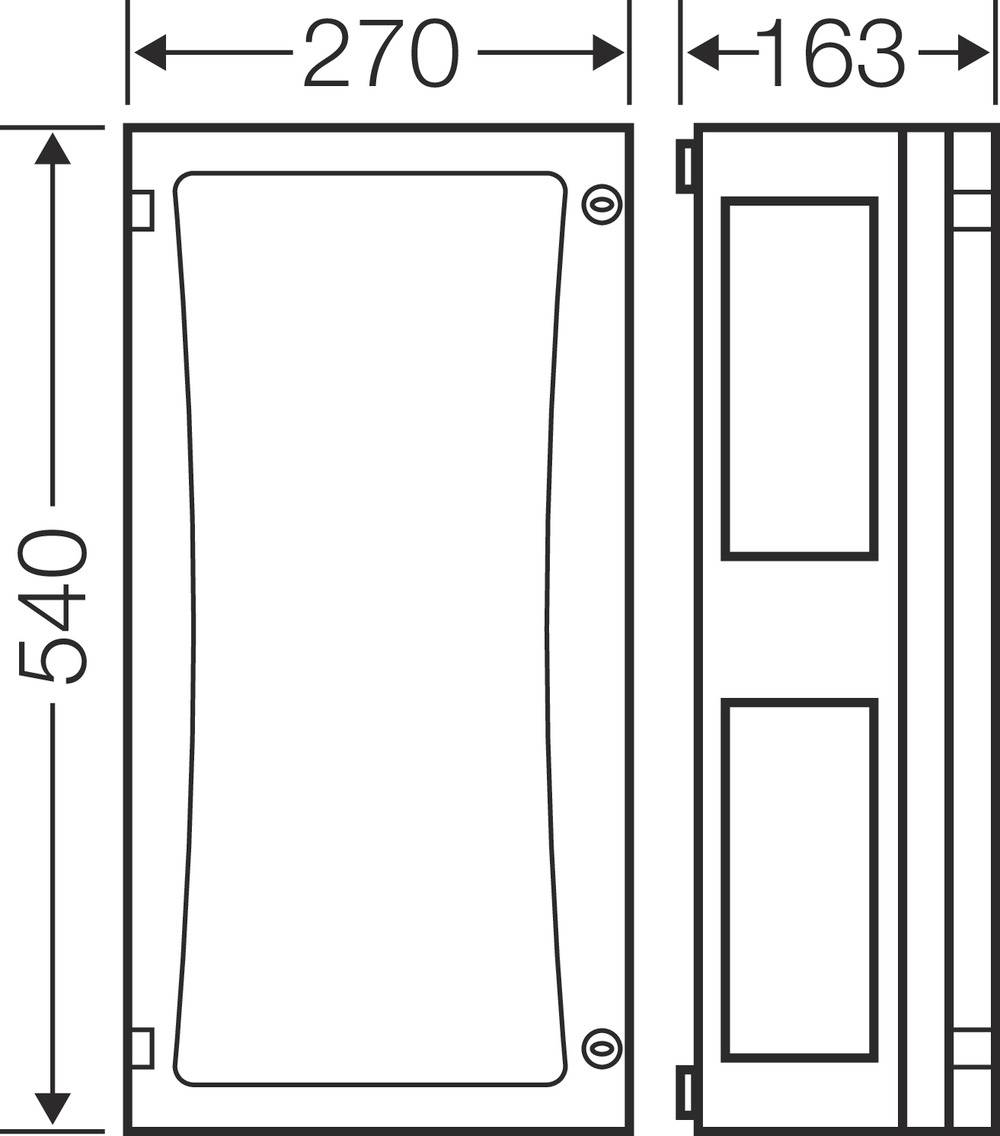

270 x 540 x 163 mm
- Content
1 pc(s)
- Type
FP 0330
- Dim
(L x W x H) 540 x 270 x 540 mm
- Manufacturer part #
68000203
- Depth
163 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292645 Hensel FP 0330 Casing 270 x 540 x 163 Plastic 1 pc(s)
Description
Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Empty housing with non-transparent door and door lock with tool actuation. For the installation of devices on mounting plate or DIN mounting rail, installation dimensions W 216 x H 486 x D 140 mm. Max. Mounting depth with built-in mounting plate 136 mm, with built-in mounting rail 125 mm. The sealing device for the door seal must be ordered separately.
