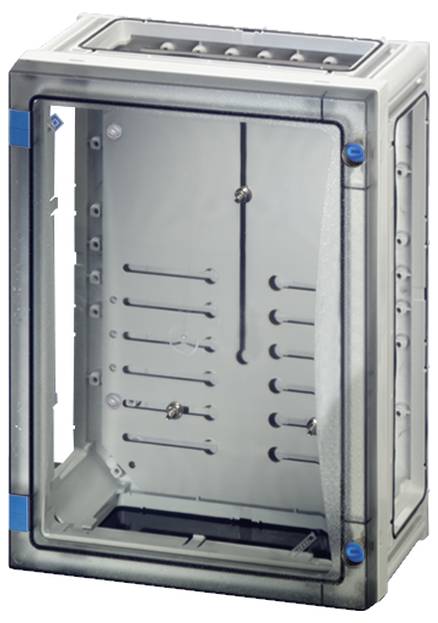

Hensel FP 2211 Casing 270 x 360 x 163 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Casing
Material
Plastic
IP rating
IP66
Width
270 mm
Technical specifications
- Installation depth: 136 mm
- With hinged lid: Yes
- Mounting type: Construction
- Packaging type
Piece
- Product type
Casing
- Features
with DIN rail
- Material
Plastic
IP66
- Factory colour
Multicolour
- Type
Counter casing
- Width
270 mm
- Height
360 mm
- Dimensions

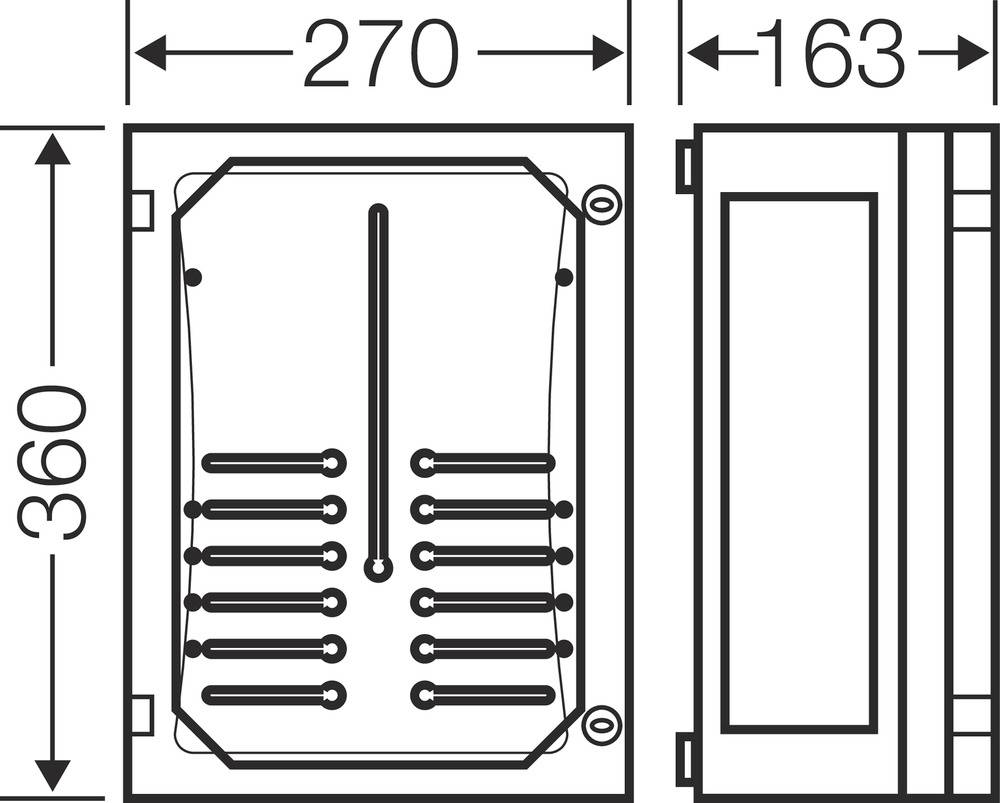

270 x 360 x 163 mm
- Weight
2.39
- Content
1 pc(s)
- Type
FP 2211
- Dim
(W x H x D) 270 x 360 x 163 mm
- Manufacturer part #
68000213
- Depth
163 mm
Surface mounting
270
360 mm
163 mm
TRUE
136 mm
Plastic
IP65
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2291610 Hensel FP 2211 Casing 270 x 360 x 163 Plastic 1 pc(s)
Description
Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Counter housing for counters with three-point mounting, including meter attachment, transparent door and door lock with tool actuation. Max. Mounting depth 136 mm. Use in the unmeasured area after consultation with local network fitters. The door sealing device must be ordered separately.
